012528CD100
ActiveEssentra Components

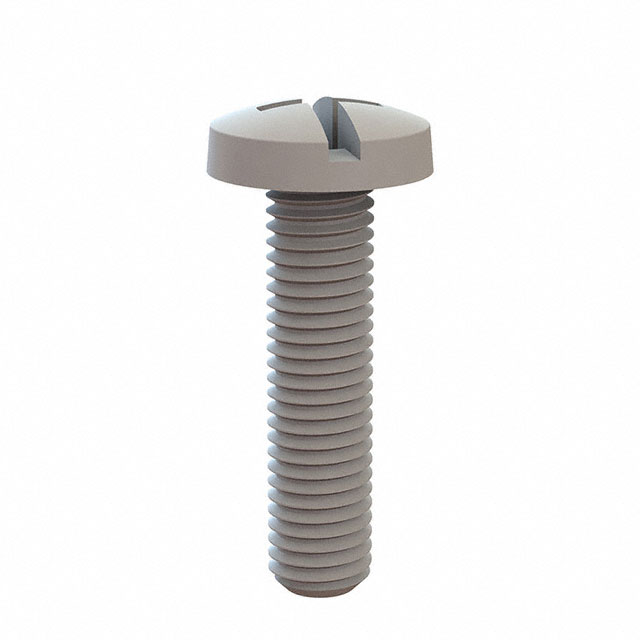

MACH SCRW PAN COMBO 1/4"-28
012528CD100
ActiveEssentra Components
MACH SCRW PAN COMBO 1/4"-28
Description
General part information
012528CD Series
1/4"-28 Pan Head Machine Screw Combination Drive Nylon
Technical Specifications
Parameters and characteristics for this part
| Specification | 012528CD100 |
|---|---|
| Drive Type | Combination |
| Head Diameter | 0.511 in |
| Head Height | 0.317 in |
| Length - Below Head | 1 in |
| Length - Overall | 1.317 in |
| Material | Nylon |
| Screw Head Type | Pan Head |
| Thread Pitch (TPI) | 28 TPI |
| Thread Size (Nominal) | 0.25 in |
| Type | Machine Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
