Specification	JLLN1200XXP

Applications	Electrical, Industrial
Approval Agency	CE, UL, UR
Breaking Capacity (AC)	200 kA
Breaking Capacity (DC)	20 kA
Class	T
Current Rating	1200 A
Fuse Type	Cartridge
Mounting Type	Bolt Mount
Package / Case	Blade Terminal (Bolt), Cylindrical
Response Time	Fast Blow
Size / Dimension Diameter	2.5 in
Size / Dimension Length	4 in
Voltage Rating - AC	300 V
Voltage Rating - DC	125 V

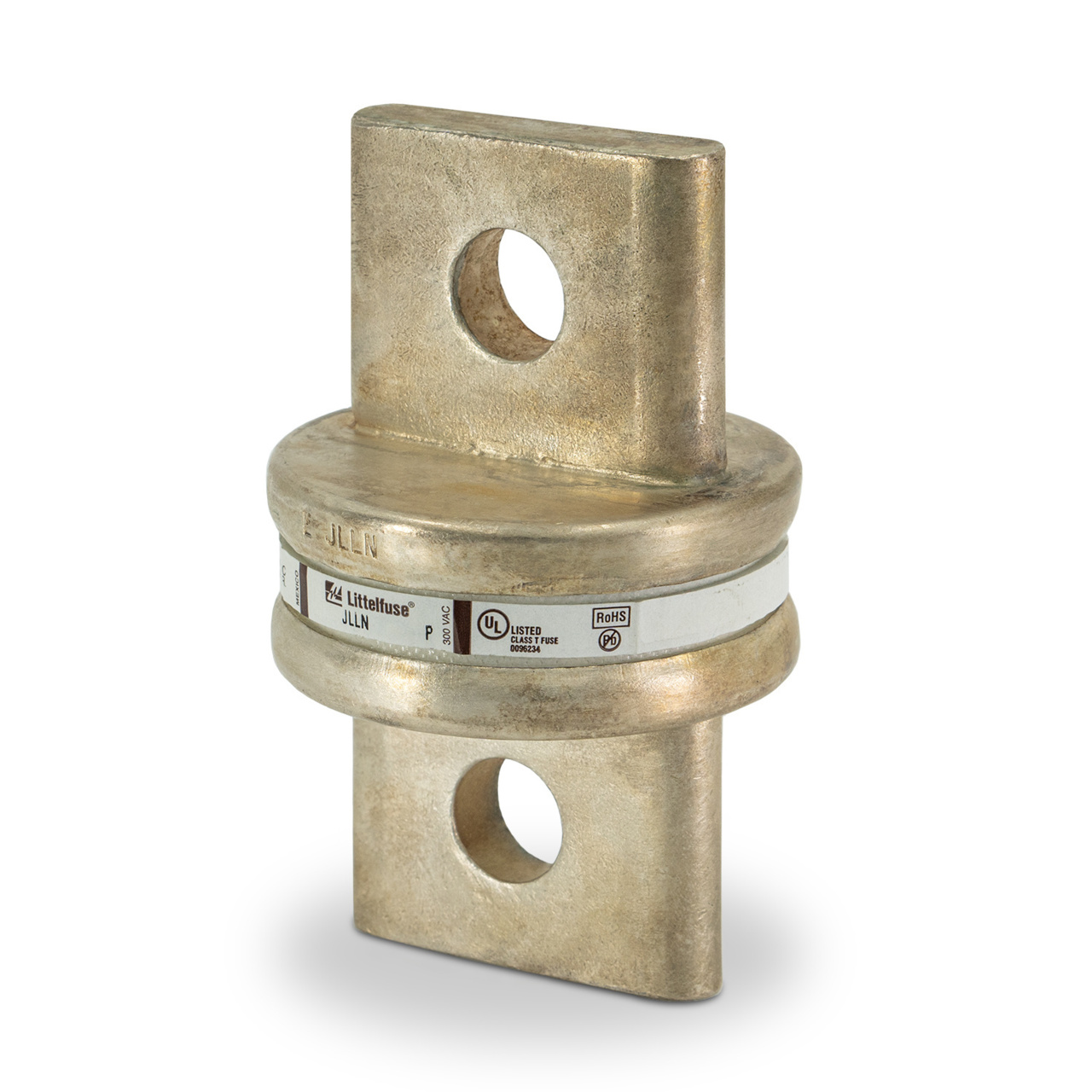

JLLN1200P Series

FUS 300V F/A CLASS T 1200A PLTD

Part	Current Rating	Voltage Rating - DC	Package / Case	Mounting Type	Fuse Type	Response Time	Voltage Rating - AC	Class	Size / Dimension Diameter	Size / Dimension Length	Approval Agency	Breaking Capacity (AC)	Breaking Capacity (DC)	Applications
LITTELFUSE JLLN1200XXP	1200 A	125 V	Blade Terminal (Bolt) Cylindrical	Bolt Mount	Cartridge	Fast Blow	300 V	T	2.5 in	4 in	CE UL UR	200 kA	20 kA	Electrical Industrial
