LCBS-L-8-01

Active

Essentra Access Solutions

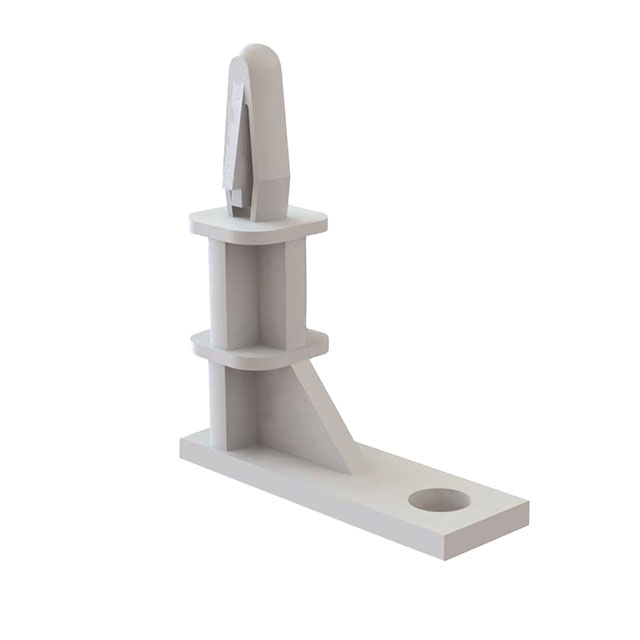

CBS LOCKING "L" TYPE 1/2"

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBS LOCKING "L" TYPE 1/2"

Technical Specifications

Parameters and characteristics for this part

Specification	LCBS-L-8-01

Between Board Height	0.5 in
Between Board Height	12.7 mm
Between Board Height	0.5 in
Holding Type	Snap Lock
Material	Nylon
Mounting Hole Diameter [diameter]	3.5 mm
Mounting Hole Diameter [diameter]	0.138 in
Mounting Type	Screw Mount
Support Hole Diameter [diameter]	3.2 mm
Support Hole Diameter [diameter]	0.126 in
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

Part	Mounting Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Between Board Height	Between Board Height	Between Board Height	Holding Type	Material
Essentra Access Solutions LCBS-L-8-01	Screw Mount	3.2 mm	0.126 in	0.0625 "	0.062 "	1.57 mm	3.5 mm	0.138 in	0.5 in	12.7 mm	0.5 in	Snap Lock	Nylon
Essentra Access Solutions LCBS-L-6-01	Screw Mount	3.2 mm	0.126 in	0.0625 "	0.062 "	1.57 mm	3.5 mm	0.138 in	0.374 in	9.5 mm		Snap Lock	Nylon
Essentra Access Solutions LCBS-L-10-01	Screw Mount	3.2 mm	0.126 in	0.0625 "	0.062 "	1.57 mm	3.5 mm	0.138 in	0.625 in	15.88 mm	0.625 in	Snap Lock	Nylon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 0.31

General part information

Board Support Snap Lock / Screw Mount Nylon 0.500" (12.70mm) 1/2"
