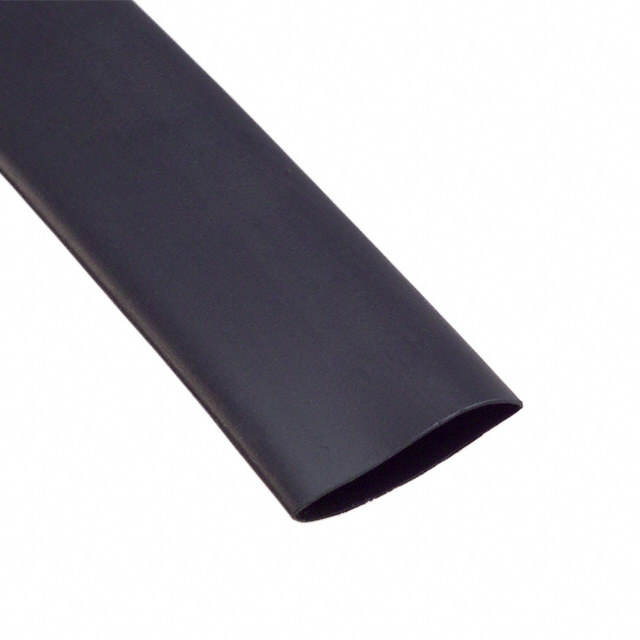

TAT-125-1/2-0-STK

Obsolete

TE Connectivity Raychem Cable Protection

HEATSHRINK DUAL WALL 1/2"X4' BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TAT-125-1/2-0-STK

Obsolete

TE Connectivity Raychem Cable Protection

HEATSHRINK DUAL WALL 1/2"X4' BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TAT-125-1/2-0-STK

Color	Black
Features	Adhesive Lined, Flame Retardant
Inner Diameter - Recovered [diameter]	0.25 in
Inner Diameter - Recovered [diameter]	6.35 mm
Inner Diameter - Supplied [diameter]	12.7 mm
Inner Diameter - Supplied [diameter]	0.5 in
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.76 mm
Recovered Wall Thickness	0.03 "
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	95 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	65 °F, 18 °C
Type	Tubing, Flexible

TAT-125 Series

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length [x]	Length [x]	Shelf Life	Type	Color	Material	Shrink Temperature	Operating Temperature [Min]	Operating Temperature [Max]	Shrinkage Ratio	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Features	Inner Diameter - Recovered	Inner Diameter - Recovered	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Shelf Life Start
TE Connectivity Raychem Cable Protection TAT-125-3/16-0-STK	4.75 mm	0.187 in	1.22 m	4 ft	60 Months	Tubing Flexible	Black	Polyolefin (PO)	95 °C	-55 °C	110 °C	2 to 1	18 °C 65 °F	35 °C	0.71 mm	0.028 "	Adhesive Lined Flame Retardant	2.36 mm	0.093 in
TE Connectivity Raychem Cable Protection TAT-125-3/16-6-STK	4.75 mm	0.187 in	1.22 m	4 ft	60 Months	Tubing Flexible	Blue	Polyolefin (PO)	95 °C	-55 °C	110 °C	2 to 1	18 °C 65 °F	35 °C	0.71 mm	0.028 "	Adhesive Lined	2.36 mm	0.093 in
TE Connectivity Raychem Cable Protection TAT-125-3/4-2-STK			1.22 m	4 ft	60 Months	Tubing Flexible	Red	Polyolefin (PO)	95 °C	-55 °C	110 °C	2 to 1	18 °C 65 °F	35 °C	0.89 mm	0.035 in	Adhesive Lined			0.374 "	9.5 mm
TE Connectivity Raychem Cable Protection TAT-125-3/16-0-STK-CS6171	4.75 mm	0.187 in	1.22 m	4 ft	60 Months	Tubing Flexible	Black	Polyolefin (PO)	95 °C	-55 °C	110 °C	2 to 1	18 °C 65 °F	35 °C	0.71 mm	0.028 "	Adhesive Lined Cut-Through Resistant Flame Retardant	2.36 mm	0.093 in
TE Connectivity Raychem Cable Protection TAT-125-1/4-9-STK	6.4 mm	0.252 "	1.22 m	4 ft	60 Months	Tubing Flexible	White	Polyolefin (PO)	95 °C	-55 °C	110 °C	2 to 1	18 °C 65 °F	35 °C	0.76 mm		Adhesive Lined	3.18 mm		0.125 in		0.03 "
TE Connectivity Raychem Cable Protection TAT-125-3/8-X-STK	9.53 mm	0.375 in	1.22 m	4 ft	60 Months	Tubing Flexible	Clear	Polyolefin (PO)	95 °C	-55 °C	110 °C	2 to 1	18 °C 65 °F	35 °C	0.74 mm	0.029 in	Adhesive Lined			0.187 in	4.75 mm
TE Connectivity Raychem Cable Protection TAT-125-1/8-X-STK	3.18 mm	0.125 "	1.22 m	4 ft	60 Months	Tubing Flexible	Clear	Polyolefin (PO)	95 °C	-55 °C	110 °C	2 to 1	18 °C 65 °F	35 °C	0.76 mm		Adhesive Lined			0.062 in	1.57 mm	0.03 "
TE Connectivity Raychem Cable Protection TAT-125-1-1/2-2-STK	38.1 mm	1.5 in	1.22 m	4 ft	60 Months	Tubing Flexible	Red	Polyolefin (PO)	95 °C	-55 °C	110 °C	2 to 1	18 °C 65 °F	35 °C	1.19 mm	0.047 "	Adhesive Lined Cut-Through Resistant Flame Retardant			0.75 "	19.05 mm
TE Connectivity Raychem Cable Protection TAT-125-3/4-0-STK-CS5451			1.22 m	4 ft	60 Months	Tubing Flexible	Black	Polyolefin (PO)	95 °C	-55 °C	110 °C	2 to 1	18 °C 65 °F	35 °C	0.89 mm	0.035 in	Adhesive Lined Cut-Through Resistant Flame Retardant			0.375 in	9.53 mm
TE Connectivity Raychem Cable Protection TAT-125-1/2-0-STK	12.7 mm	0.5 in	1.22 m	4 ft	60 Months	Tubing Flexible	Black	Polyolefin (PO)	95 °C	-55 °C	110 °C	2 to 1	18 °C 65 °F	35 °C	0.76 mm		Adhesive Lined Flame Retardant			0.25 in	6.35 mm	0.03 "	Date of Manufacture

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

TAT-125 Series

Heat Shrink Tubing, Flexible 0.500" (12.70mm) 2 to 1 Black 4.00' (1.22m)
