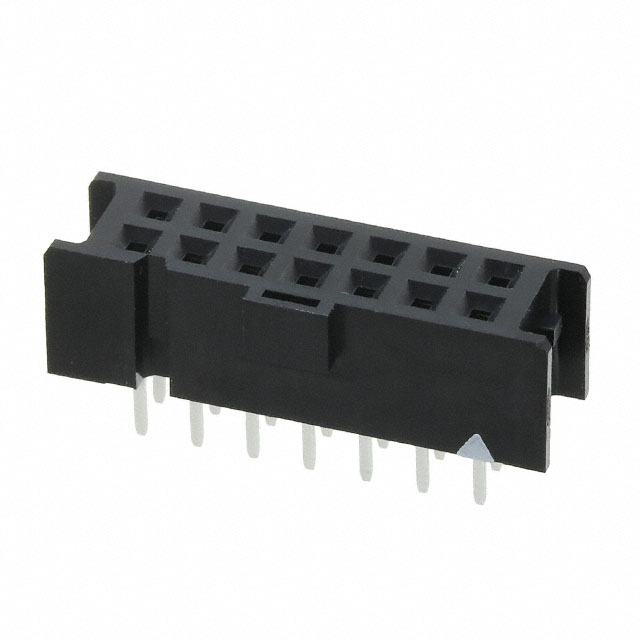

XG4H-1431

Active

Omron Electronics Inc-EMC Div

CONN RCPT 14POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

XG4H-1431

Active

Omron Electronics Inc-EMC Div

CONN RCPT 14POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XG4H-1431

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Polarizing Key
Insulation Color	Black
Insulation Height	0.283 "
Insulation Height	7.19 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mated Stacking Heights	9.7 mm, 10.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	300 VAC

XG4H Series

Part	Pitch - Mating	Pitch - Mating	Contact Material	Number of Positions Loaded	Mounting Type	Features	Contact Finish - Mating	Mated Stacking Heights	Termination	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Connector Type	Current Rating (Amps)	Contact Finish - Post	Material Flammability Rating	Insulation Material	Number of Positions	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Type	Number of Rows	Number of Positions
Omron Electronics Inc-EMC Div XG4H-6431	0.1 in	2.54 mm	Phosphor Bronze	All	Through Hole	Polarizing Key	Gold	9.7 mm 10.1 mm	Solder	0.283 "	7.19 mm	2 çm	78.7 çin	Black	0.15 µm	5.9 µin	2.54 mm	0.1 in	Latch Holder	Receptacle	3 A	Tin	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	64	300 VAC	105 ░C	-55 °C	Square	0.122 "	3.1 mm	Female Socket	2
Omron Electronics Inc-EMC Div XG4H-6471	0.1 in	2.54 mm	Phosphor Bronze	All	Through Hole	Polarizing Key	Gold	9.7 mm 10.1 mm	Solder	0.283 "	7.19 mm	2 çm	78.7 çin	Black	0.15 µm	5.9 µin	2.54 mm	0.1 in	Latch Holder	Receptacle	3 A	Tin	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	64	300 VAC	105 ░C	-55 °C	Square	0.122 "	3.1 mm	Female Socket	2
Omron Electronics Inc-EMC Div XG4H-1631	0.1 in	2.54 mm	Phosphor Bronze	All	Through Hole	Polarizing Key	Gold	9.7 mm 10.1 mm	Solder	0.283 "	7.19 mm	2 çm	78.7 çin	Black	0.15 µm	5.9 µin	2.54 mm	0.1 in	Latch Holder	Receptacle	3 A	Tin	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled		300 VAC	105 ░C	-55 °C	Square	0.122 "	3.1 mm	Female Socket	2	16
Omron Electronics Inc-EMC Div XG4H-1431	0.1 in	2.54 mm	Phosphor Bronze	All	Through Hole	Polarizing Key	Gold	9.7 mm 10.1 mm	Solder	0.283 "	7.19 mm	2 çm	78.7 çin	Black	0.15 µm	5.9 µin	2.54 mm	0.1 in	Latch Holder	Receptacle	3 A	Tin	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	14	300 VAC	105 ░C	-55 °C	Square	0.122 "	3.1 mm	Female Socket	2
Omron Electronics Inc-EMC Div XG4H-2031	0.1 in	2.54 mm	Phosphor Bronze	All	Through Hole	Polarizing Key	Gold	9.7 mm 10.1 mm	Solder	0.283 "	7.19 mm	2 çm	78.7 çin	Black	0.15 µm	5.9 µin	2.54 mm	0.1 in	Latch Holder	Receptacle	3 A	Tin	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	20	300 VAC	105 ░C	-55 °C	Square	0.122 "	3.1 mm	Female Socket	2
Omron Electronics Inc-EMC Div XG4H-4034	0.1 in	2.54 mm	Phosphor Bronze	All	Through Hole Right Angle		Gold		Solder	0.246 in	6.25 mm	2 çm	78.7 çin	Black	0.15 µm	5.9 µin	2.54 mm	0.1 in	Latch Holder	Receptacle	3 A	Tin	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	40	300 VAC	105 ░C	-55 °C	Square	0.115 in	2.92 mm	Female Socket	2
