PKB.M0.8SL.LJ

Active

LEMO

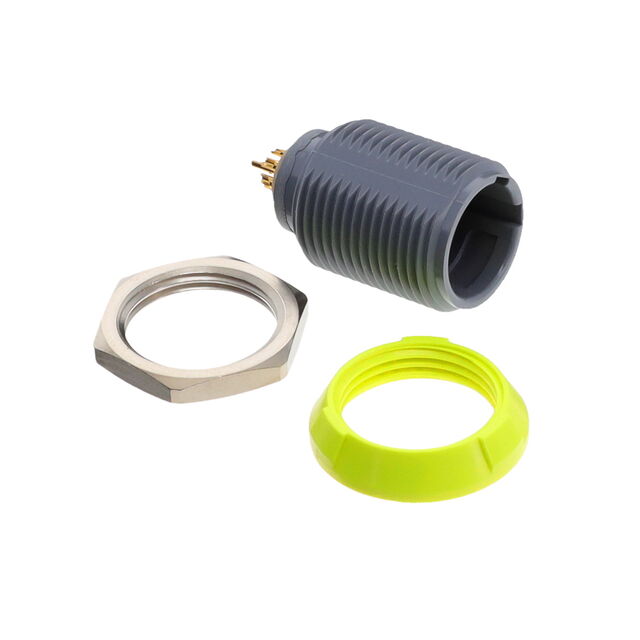

CONN RCPT FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PKB.M0.8SL.LJ

Active

LEMO

CONN RCPT FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.22
		10	$ 22.96
		25	$ 21.96
		50	$ 21.26
		100	$ 20.55
		250	$ 19.41
		500	$ 18.85

Description

General part information

PKB.M0 Series

8 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PKB.M0.8SL.LJ	PKB.M0 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray, Yellow	Gray, Yellow, Black, Blue
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	5 A	3 - 8 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount, Right Angle
Number of Positions	8	4 - 9
Operating Temperature [Max]	170 °C	150 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	B	B
Primary Material	Plastic	Plastic
Shell Material	Polyetherimide (PEI)	Polyetherimide (PEI), Polysulfone (PSU)
Shell Size - Insert	M08	M08, M04, M09, M06, M05
Shielding	Unshielded	Unshielded
Termination	-	Solder, Crimp

PKB.M0 Series

CONN RCPT FMALE 8P GOLD SLDR CUP

Part	Mounting Feature	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish - Mating	Number of Positions	Shielding	Connector Type	Shell Material	Current Rating (Amps)	Insert Material	Shell Size - Insert	Ingress Protection	Primary Material	Applications	Orientation	Termination	Mounting Type
LEMO PKB.M0.8SL.LJ	Front and Rear Side Nut	Detent Lock, Push-Pull	-50 °C	170 °C	Gray, Yellow	Gold	8	Unshielded	Receptacle, Female Sockets	Polyetherimide (PEI)	5 A	Polyetheretherketone (PEEK)	M08	IP50	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	B
LEMO PKB.M0.4TL.NN	Front and Rear Side Nut	Detent Lock, Push-Pull	-50 °C	170 °C	Black	Gold	4	Unshielded	Receptacle, Female Sockets	Polyetherimide (PEI)	8 A	Polyetheretherketone (PEEK)	M04	IP50	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	B	Solder	Panel Mount, Through Hole
LEMO PKB.M0.9SL.LA	Front and Rear Side Nut	Detent Lock, Push-Pull	-50 °C	170 °C	Blue, Gray	Gold	9	Unshielded	Receptacle, Female Sockets	Polyetherimide (PEI)	3 A	Polyetheretherketone (PEEK)	M09	IP50	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	B
LEMO PKB.M0.4SL.LG	Front and Rear Side Nut	Detent Lock, Push-Pull	-50 °C	170 °C	Gray	Gold	4	Unshielded	Receptacle, Female Sockets	Polyetherimide (PEI)	8 A	Polyetheretherketone (PEEK)	M04	IP50	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	B
LEMO PKB.M0.4SL.MG	Front and Rear Side Nut	Detent Lock, Push-Pull	-50 °C	170 °C	Gray	Gold	4	Unshielded	Receptacle, Female Sockets	Polyetherimide (PEI)	8 A	Polyetheretherketone (PEEK)	M04	IP50	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	B	Crimp
LEMO PKB.M0.4TL.LN	Front and Rear Side Nut	Detent Lock, Push-Pull	-50 °C	170 °C	Black	Gold	4	Unshielded	Receptacle, Female Sockets	Polyetherimide (PEI)	8 A	Polyetheretherketone (PEEK)	M04	IP50	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	B
LEMO PKB.M0.6SL.LZ	Front and Rear Side Nut	Detent Lock, Push-Pull	-50 °C	170 °C	Gray	Gold	6	Unshielded	Receptacle, Female Sockets	Polyetherimide (PEI)	6 A	Polyetheretherketone (PEEK)	M06	IP50	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	B
LEMO PKB.M0.8GL.NJ	Front and Rear Side Nut	Detent Lock, Push-Pull	-50 °C	150 °C	Gray, Yellow	Gold	8	Unshielded	Receptacle, Female Sockets	Polysulfone (PSU)	5 A	Polyetheretherketone (PEEK)	M08	IP50	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	B	Solder	Panel Mount, Through Hole
LEMO PKB.M0.4SL.LA	Front and Rear Side Nut	Detent Lock, Push-Pull	-50 °C	170 °C	Blue, Gray	Gold	4	Unshielded	Receptacle, Female Sockets	Polyetherimide (PEI)	8 A	Polyetheretherketone (PEEK)	M04	IP50	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	B
LEMO PKB.M0.8SL.VJ	Front and Rear Side Nut	Detent Lock, Push-Pull	-50 °C	170 °C	Gray, Yellow	Gold	8	Unshielded	Receptacle, Female Sockets	Polyetherimide (PEI)	5 A	Polyetheretherketone (PEEK)	M08	IP50	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	B	Solder	Panel Mount, Right Angle, Through Hole
