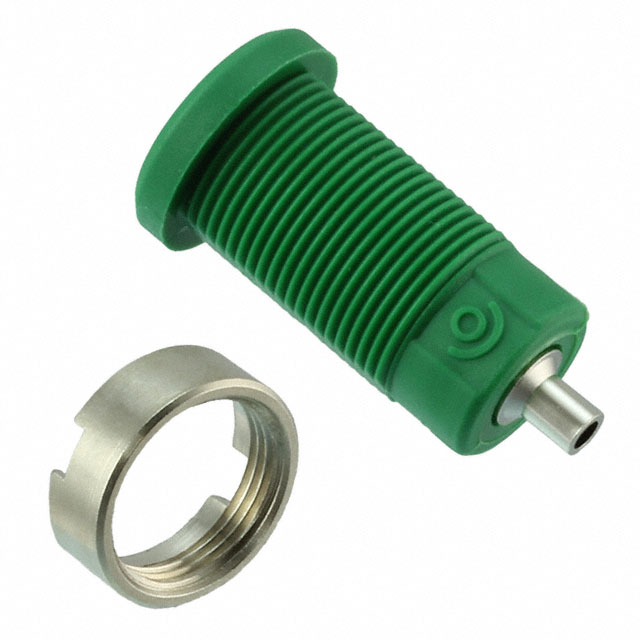

CT2240-5
ObsoleteCal Test Electronics
BANANA TEST CONNECTOR, JACK, PANEL MOUNT, 25 A, 1 KV, NICKEL PLATED CONTACTS, GREEN
CT2240-5
ObsoleteCal Test Electronics
BANANA TEST CONNECTOR, JACK, PANEL MOUNT, 25 A, 1 KV, NICKEL PLATED CONTACTS, GREEN
Description
General part information
CT2240 Series
Banana Jack Connector Standard Banana Solder Green
Technical Specifications
Parameters and characteristics for this part
| Specification | CT2240-5 |
|---|---|
| Body Material | Nylon, PA, Polyamide |
| Color | Green |
| Contact Finish | Nickel |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Mating End Insulated |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Plug/Mating Plug Diameter | Standard Banana |
| Termination | Solder |
| Type | Banana Jack |
