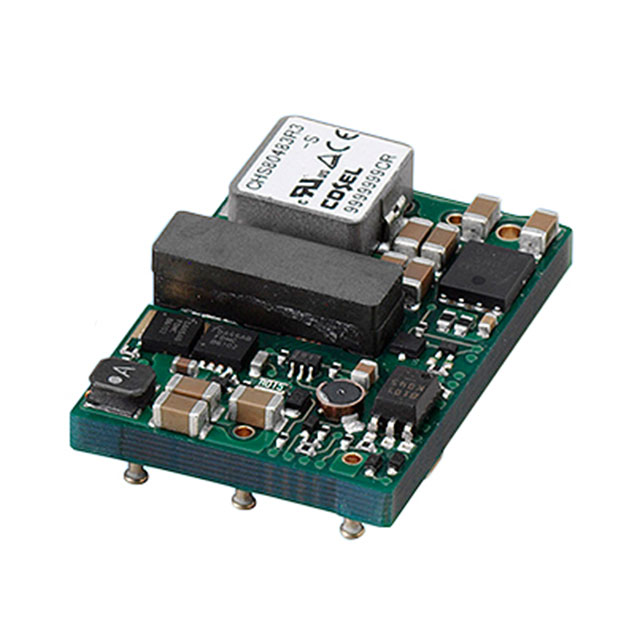

CHS804805-S
ActiveCosel USA, Inc.
DC DC CONVERTER 5V 80W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CHS804805-S
ActiveCosel USA, Inc.
DC DC CONVERTER 5V 80W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CHS804805-S |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 16 A |
| Efficiency | 92 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SMD Module |
| Power (Watts) | 80 W |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [x] | 1.3 " |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [y] | 22.8 mm |
| Size / Dimension [z] | 10.5 mm |
| Size / Dimension [z] | 0.41 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 76 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 250 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 67.47 | |
Description
General part information
CHS804805 Series
Isolated Module DC DC Converter 1 Output 5V 16A 36V - 76V Input
