0040.5000.2

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	0040.5000.2

Accomodates a Fuse	True
Approval Agency	UL, cURus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	33.3 mm
Panel Cutout Dimensions [y]	33.3 mm
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Material Flammability Rating	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Filter Type	Voltage Rating - Appliance Inlet	Fuse Holder, Drawer	Connector Style	Termination	Termination	Current Rating - Appliance Inlet	Approval Agency	Mounting Type	Connector Type	Ingress Protection	Accomodates a Fuse
SCHURTER Inc. 0040.5000.2	UL94 V-0	33.3 mm	33.3 mm	Unfiltered - Commercial	250 VAC	Fuse Holder	IEC 320-C14	0.189 ", 4.8 mm	Quick Connect	10 A	cURus, UL	Flange, Panel Mount	Receptacle, Male Blades - Module	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

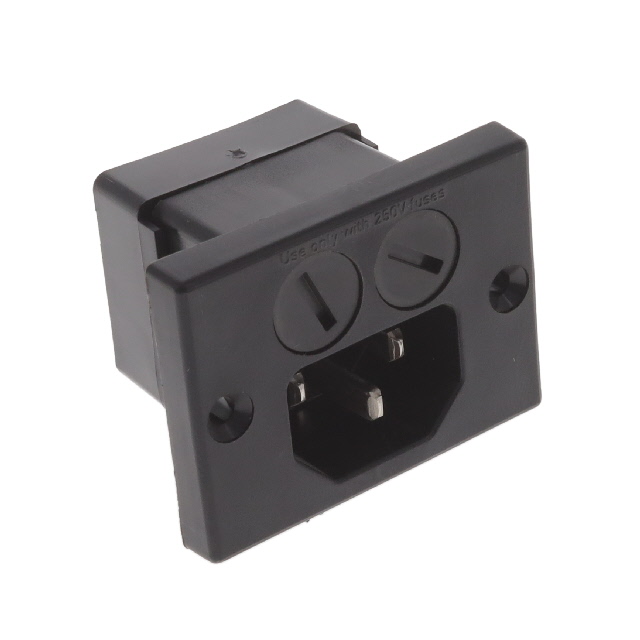

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange

Technical documentation and resources
