AXT650124
ActivePanasonic Electric Works

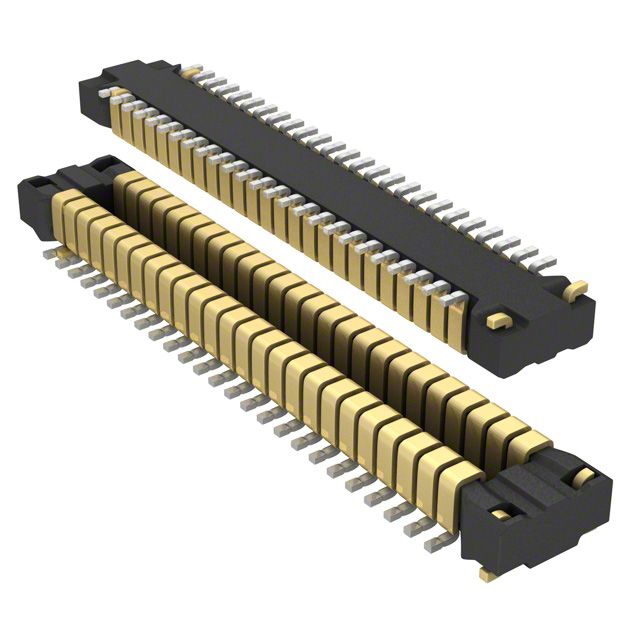

CONN HDR 50POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXT650124
ActivePanasonic Electric Works
CONN HDR 50POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXT650124 |
|---|---|
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board [z] | 0.84 mm |
| Height Above Board [z] | 0.033 " |
| Mated Stacking Heights | 1 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.31 | |
| 10 | $ 1.14 | |||
| 25 | $ 1.09 | |||
| 50 | $ 1.07 | |||
| 100 | $ 1.02 | |||
| 250 | $ 0.92 | |||
| 500 | $ 0.86 | |||
| Digi-Reel® | 1 | $ 1.31 | ||
| 10 | $ 1.14 | |||
| 25 | $ 1.09 | |||
| 50 | $ 1.07 | |||
| 100 | $ 1.02 | |||
| 250 | $ 0.92 | |||
| 500 | $ 0.86 | |||
| Tape & Reel (TR) | 3000 | $ 0.86 | ||
Description
General part information
AXT650 Series
50 Position Connector Header, Center Strip Contacts Surface Mount Gold
