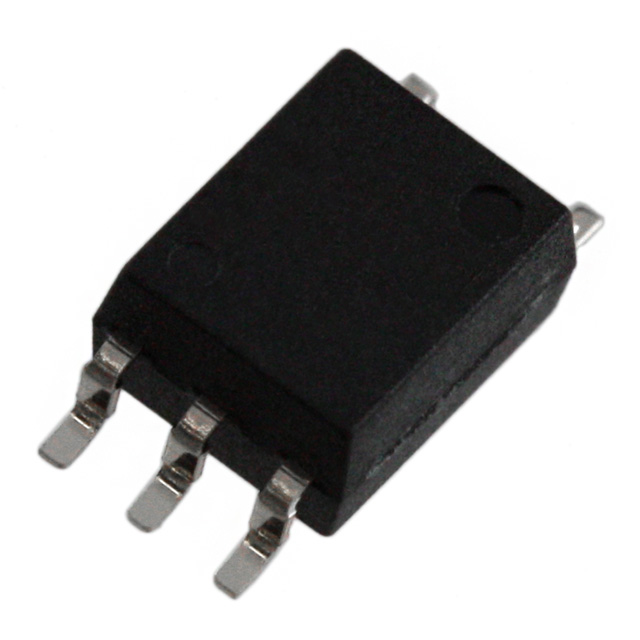

TLP2312(V4-TPL,E

Active

Toshiba Semiconductor and Storage

HIGH SPEED PHOTOCOUPLER; 5PIN SO

Deep-Dive with AI

Search across all available documentation for this part.

TLP2312(V4-TPL,E

Active

Toshiba Semiconductor and Storage

HIGH SPEED PHOTOCOUPLER; 5PIN SO

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLP2312(V4-TPL,E

Common Mode Transient Immunity (Min) [Min]	20 kV/µs
Current - DC Forward (If) (Max) [Max]	8 mA
Current - Output / Channel	8 mA
Data Rate	5 MBd
Input Type	DC
Inputs - Side 1/Side 2 [custom]	0
Inputs - Side 1/Side 2 [custom]	1
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	Totem Pole, Push-Pull
Package / Case	4.55 mm, 5, 0.179 "
Package / Case	6-SOIC
Propagation Delay tpLH / tpHL (Max) [Max] [custom]	250 ns
Propagation Delay tpLH / tpHL (Max) [Max] [custom]	250 ns
Rise / Fall Time (Typ) [custom]	1.6 ns
Rise / Fall Time (Typ) [custom]	2.2 ns
Supplier Device Package	6-SO
Supplier Device Package	5 Lead
Voltage - Forward (Vf) (Typ)	1.53 V
Voltage - Isolation	3750 Vrms
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.2 V

TLP2312 Series

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Common Mode Transient Immunity (Min) [Min]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output / Channel	Input Type	Supplier Device Package	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Number of Channels	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Mounting Type	Data Rate	Current - DC Forward (If) (Max) [Max]	Output Type	Package / Case	Package / Case	Inputs - Side 1/Side 2 [custom]
Toshiba Semiconductor and Storage TLP2312(V4,E	5.5 V	2.2 V	20 kV/µs	3750 Vrms	125 °C	-40 °C	8 mA	DC	6-SO	5 Lead	1.53 V	1	1.6 ns	2.2 ns	250 ns	250 ns	Surface Mount	5 MBd	8 mA	Push-Pull Totem Pole	0.179 " 4.55 mm 5	6-SOIC	1
Toshiba Semiconductor and Storage TLP2312(V4-TPL,E	5.5 V	2.2 V	20 kV/µs	3750 Vrms	125 °C	-40 °C	8 mA	DC	6-SO	5 Lead	1.53 V	1	1.6 ns	2.2 ns	250 ns	250 ns	Surface Mount	5 MBd	8 mA	Push-Pull Totem Pole	0.179 " 4.55 mm 5	6-SOIC	1
Toshiba Semiconductor and Storage TLP2312(TPL,E	5.5 V	2.2 V	20 kV/µs	3750 Vrms	125 °C	-40 °C	8 mA	DC	6-SO	5 Lead	1.53 V	1	1.6 ns	2.2 ns	250 ns	250 ns	Surface Mount	5 MBd	8 mA	Push-Pull Totem Pole	0.179 " 4.55 mm 5	6-SOIC	1
Toshiba Semiconductor and Storage TLP2312(TPR,E	5.5 V	2.2 V	20 kV/µs	3750 Vrms	125 °C	-40 °C	8 mA	DC	6-SO	5 Lead	1.53 V	1	1.6 ns	2.2 ns	250 ns	250 ns	Surface Mount	5 MBd	8 mA	Push-Pull Totem Pole	0.179 " 4.55 mm 5	6-SOIC	1
Toshiba Semiconductor and Storage TLP2312(V4-TPR,E	5.5 V	2.2 V	20 kV/µs	3750 Vrms	125 °C	-40 °C	8 mA	DC	6-SO	5 Lead	1.53 V	1	1.6 ns	2.2 ns	250 ns	250 ns	Surface Mount	5 MBd	8 mA	Push-Pull Totem Pole	0.179 " 4.55 mm 5	6-SOIC	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.25
		10	$ 0.79
		100	$ 0.56
		500	$ 0.53
	Digi-Reel®	1	$ 1.25
		10	$ 0.79
		100	$ 0.56
		500	$ 0.53
	Tape & Reel (TR)	3000	$ 0.53

Description

General part information

TLP2312 Series

Logic Output Optoisolator 5Mbps Push-Pull, Totem Pole 3750Vrms 1 Channel 20kV/µs CMTI 6-SO, 5 Lead

Documents

Technical documentation and resources

No documents available
