7407W 0601000

Active

Belden Inc.

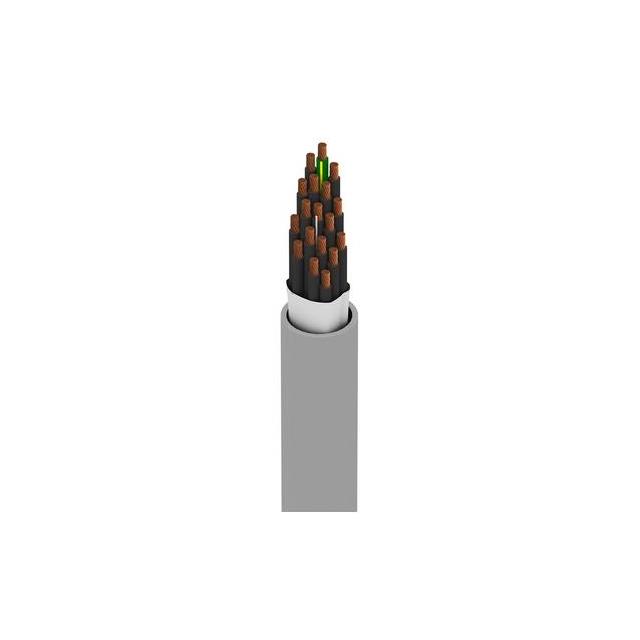

CABLE 18COND 20AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 18COND 20AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	7407W 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19
Conductor Strand [custom]	32 AWG
Features	Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	11.2 mm
Jacket (Insulation) Diameter [diameter]	0.441 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	1.346 mm
Jacket (Insulation) Thickness	0.053 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	18
Ratings	UL Style 20327
Voltage	300 V
Wire Gauge	20 AWG

Part	Conductor Material	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Voltage	Jacket Color	Features	Wire Gauge	Length	Length	Ratings	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type
Belden Inc. 7407W 060250	Copper Bare	Thermoplastic Elastomer (TPE)	11.2 mm	0.441 in	18	300 V	Chrome	Oil Resistant UV Resistant	20 AWG	3000 "	76.2 m	UL Style 20327	Poly-Vinyl Chloride (PVC)	1.346 mm	0.053 in	19	32 AWG	Multi-Conductor
Belden Inc. 7407W 0601000	Copper Bare	Thermoplastic Elastomer (TPE)	11.2 mm	0.441 in	18	300 V	Chrome	Oil Resistant UV Resistant	20 AWG	1000 ft	304.8 m	UL Style 20327	Poly-Vinyl Chloride (PVC)	1.346 mm	0.053 in	19	32 AWG	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.90

General part information

18 Conductor Multi-Conductor Cable Chrome 20 AWG 1000.0' (304.8m)

Technical documentation and resources
