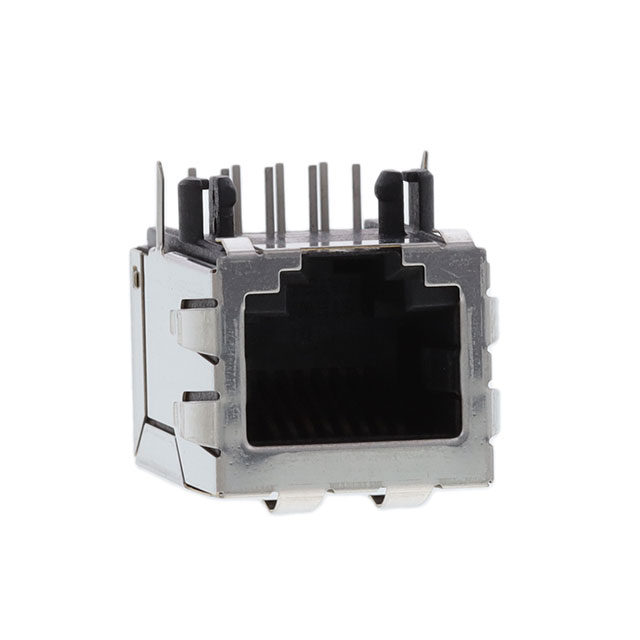

SS64800-056F

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Tab Direction	Housing Material	Contact Finish	Contact Material	Number of Positions/Contacts	Mounting Type	LED Color	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Shielding	Termination	Features	Number of Ports	Orientation
BEL MAGNETIC SOLUTIONS SS64800-055F	Jack	85 °C	-40 °C	Down	Thermoplastic Glass Filled	Gold	Copper Alloy
BEL MAGNETIC SOLUTIONS SS64800-056F	Jack	85 °C	-40 °C	Down	Thermoplastic Glass Filled	Gold	Copper Alloy
BEL MAGNETIC SOLUTIONS SS64800-031G	Jack	85 °C	-40 °C	Down	Thermoplastic	Gold	Copper Alloy	8p8c (RJ45 Ethernet)	Through Hole	Does Not Contain LED	0.76 Ám	30 Áin	1	Shielded	Solder	Board Lock EPP918A	1	90 °
BEL MAGNETIC SOLUTIONS SS64800-031F	Jack	85 °C	-40 °C	Down	Thermoplastic	Gold	Copper Alloy	8p8c (RJ45 Ethernet)	Through Hole	Does Not Contain LED	0.76 Ám	30 Áin	1	Shielded	Solder		1	90 °
BEL MAGNETIC SOLUTIONS SS64800-012F	Jack	85 °C	-40 °C	Down	Thermoplastic Glass Filled	Gold	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector

Technical documentation and resources

No documents available
