870-403

Active

WAGO Corporation

JUMPER (BUSBAR), JUMPER, RAIL MOUNTED TERMINAL BLOCKS, 3 POSITIONS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

870-403

Active

WAGO Corporation

JUMPER (BUSBAR), JUMPER, RAIL MOUNTED TERMINAL BLOCKS, 3 POSITIONS

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.41
		25	$ 1.18
		100	$ 1.10
		1000	$ 0.79
		5000	$ 0.70
		10000	$ 0.68
Newark	Each	1	$ 1.48
		25	$ 1.41
		100	$ 1.31
		250	$ 1.24
		500	$ 1.16

Description

General part information

870 Series

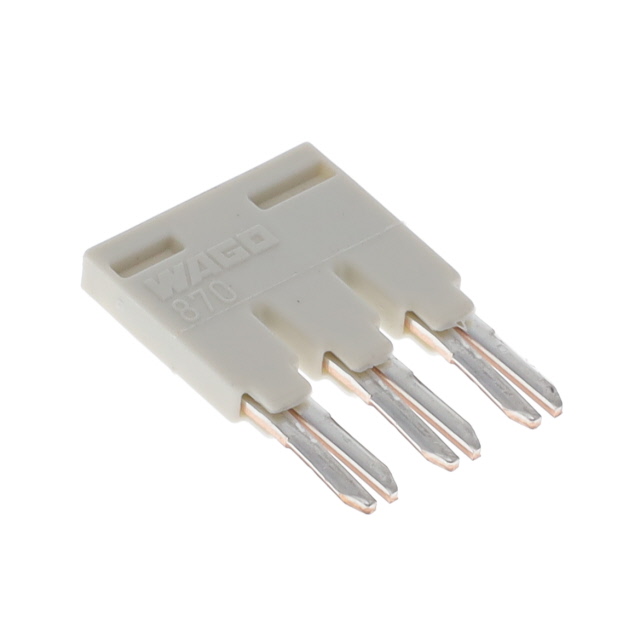

The 870-403 is a 3-position light gray insulated Push-in Jumper Bar suitable for use with the through/ground (Earth) conductor and double potential terminal blocks.

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Drawing EN

Datasheet

Specification	870-403	870 Series

Color	Gray	Gray, Green, Yellow
Current - IEC	-	24 A
For Use With/Related Products	Terminal Blocks	Terminal Blocks
Material - Insulation	-	Polyamide (PA66), Nylon 6/6
Number of Levels	-	1 - 2
Number of Levels	-	3
Number of Positions	-	2 - 10
Stripping Length	-	6 mm
Stripping Length	-	7 mm
Style	Flat Pins	Flat Pins
Terminal - Width	-	5 mm
Termination Style	-	Push In, Spring
Type	Terminal Block, Cross Connection	Terminal Block, Cross Connection, Feed Through, End Plate, Ground, Earth
Voltage - IEC	-	500 V
Wire Gauge or Range - AWG	-	28 AWG
Wire Gauge or Range - AWG	-	12 AWG
Wire Gauge or Range - mm²	-	0.08 mm²
Wire Gauge or Range - mm²	-	2.5 mm²

Part	Style	Color	For Use With/Related Products	Number of Positions	Type	Stripping Length [Min]	Stripping Length [Max]	Number of Levels	Termination Style	Current - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - IEC	Material - Insulation	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Terminal - Width
WAGO Corporation 870-402	Flat Pins	Gray	Terminal Blocks	2	Terminal Block, Cross Connection
WAGO Corporation 870-831		Gray		4	Feed Through	6 mm	7 mm	1	Push In, Spring	24 A	0.08 mm²	2.5 mm²	500 V	Polyamide (PA66), Nylon 6/6	28 AWG	12 AWG	5 mm
WAGO Corporation 870-923		Gray	Terminal Blocks		End Plate
WAGO Corporation 870-410	Flat Pins	Gray	Terminal Blocks	10	Terminal Block, Cross Connection
WAGO Corporation 870-901		Gray		2	Feed Through	6 mm	7 mm	1	Push In, Spring	24 A	0.08 mm²	2.5 mm²	500 V	Polyamide (PA66), Nylon 6/6	28 AWG	12 AWG	5 mm
WAGO Corporation 870-568		Gray	Terminal Blocks		End Plate
WAGO Corporation 870-943		Gray	Terminal Blocks		End Plate
WAGO Corporation 870-404	Flat Pins	Gray	Terminal Blocks	4	Terminal Block, Cross Connection
WAGO Corporation 870-403	Flat Pins	Gray	Terminal Blocks		Terminal Block, Cross Connection
WAGO Corporation 870-501		Gray		4	Feed Through	6 mm	7 mm	2	Push In, Spring	24 A	0.08 mm²	2.5 mm²	500 V	Polyamide (PA66), Nylon 6/6	28 AWG	12 AWG	5 mm
