870-404

Active

WAGO Corporation

JUMPER (BUSBAR), JUMPER BAR, PUSH-IN TYPE, DIN RAIL TERMINAL BLOCKS, 4 POSITIONS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

870-404

Active

WAGO Corporation

JUMPER (BUSBAR), JUMPER BAR, PUSH-IN TYPE, DIN RAIL TERMINAL BLOCKS, 4 POSITIONS

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.93
		10	$ 1.68
		25	$ 1.61
		50	$ 1.57
		100	$ 1.50
		250	$ 1.36
		500	$ 1.25
		1000	$ 1.07
		2500	$ 1.00
Newark	Each	1	$ 1.98
		25	$ 1.86
		100	$ 1.75
		250	$ 1.65
		500	$ 1.53

Description

General part information

870 Series

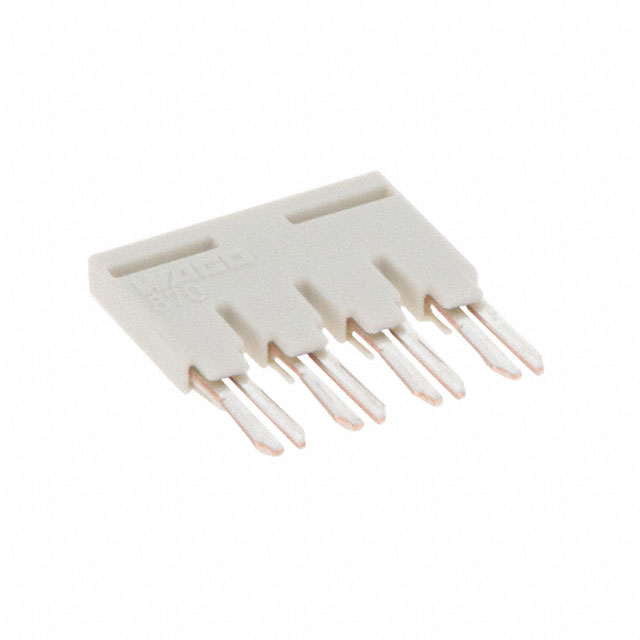

The 870-404 is a 4-position light gray insulated Push-in type Jumper Bar suitable for use with through/ground (Earth) conductor and double potential terminal blocks.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Specification	870-404	870 Series

Color	Gray	Gray, Green, Yellow
Current - IEC	-	24 A
For Use With/Related Products	Terminal Blocks	Terminal Blocks
Material - Insulation	-	Polyamide (PA66), Nylon 6/6
Number of Levels	-	1 - 2
Number of Levels	-	3
Number of Positions	4	2 - 10
Stripping Length	-	6 mm
Stripping Length	-	7 mm
Style	Flat Pins	Flat Pins
Terminal - Width	-	5 mm
Termination Style	-	Push In, Spring
Type	Terminal Block, Cross Connection	Terminal Block, Cross Connection, Feed Through, End Plate, Ground, Earth
Voltage - IEC	-	500 V
Wire Gauge or Range - AWG	-	28 AWG
Wire Gauge or Range - AWG	-	12 AWG
Wire Gauge or Range - mm²	-	0.08 mm²
Wire Gauge or Range - mm²	-	2.5 mm²

Part	Style	Color	For Use With/Related Products	Number of Positions	Type	Stripping Length [Min]	Stripping Length [Max]	Number of Levels	Termination Style	Current - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - IEC	Material - Insulation	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Terminal - Width
WAGO Corporation 870-402	Flat Pins	Gray	Terminal Blocks	2	Terminal Block, Cross Connection
WAGO Corporation 870-831		Gray		4	Feed Through	6 mm	7 mm	1	Push In, Spring	24 A	0.08 mm²	2.5 mm²	500 V	Polyamide (PA66), Nylon 6/6	28 AWG	12 AWG	5 mm
WAGO Corporation 870-923		Gray	Terminal Blocks		End Plate
WAGO Corporation 870-410	Flat Pins	Gray	Terminal Blocks	10	Terminal Block, Cross Connection
WAGO Corporation 870-901		Gray		2	Feed Through	6 mm	7 mm	1	Push In, Spring	24 A	0.08 mm²	2.5 mm²	500 V	Polyamide (PA66), Nylon 6/6	28 AWG	12 AWG	5 mm
WAGO Corporation 870-568		Gray	Terminal Blocks		End Plate
WAGO Corporation 870-943		Gray	Terminal Blocks		End Plate
WAGO Corporation 870-404	Flat Pins	Gray	Terminal Blocks	4	Terminal Block, Cross Connection
WAGO Corporation 870-403	Flat Pins	Gray	Terminal Blocks		Terminal Block, Cross Connection
WAGO Corporation 870-501		Gray		4	Feed Through	6 mm	7 mm	2	Push In, Spring	24 A	0.08 mm²	2.5 mm²	500 V	Polyamide (PA66), Nylon 6/6	28 AWG	12 AWG	5 mm
