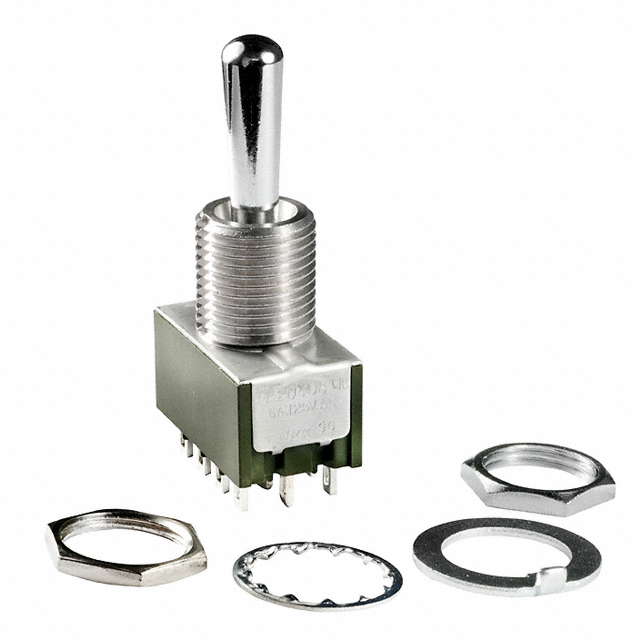

M2046B2B1W01
ObsoleteBUSHING MOUNT MINIATURE TOGGLE SWITCH; POLES: DP3T; CIRCUITS: MOM-ON-MOM; CURRENT RATING: 6A (AC), 3A (DC); RATING (AC): 125V; RATING (DC): 30V; ACTUATOR TYPE: STANDARD ROUND; ACTUATOR LENGTH: 17.50MM; ILLUMINATION: NON-ILLUMINATED; MOUNTING TYPE: PANEL MOUNT; TERMINATION STYLE: SOLDER LUG; PANEL CUTOUT DIMENSIONS: CIRCULAR - 12.50MM DIA; BUSHING THREAD: M12 X 1; FEATURES: JUMPER NEEDED TO ACHIEVE TRIPLE THROW; RATING: 6
Deep-Dive with AI
Search across all available documentation for this part.
M2046B2B1W01
ObsoleteBUSHING MOUNT MINIATURE TOGGLE SWITCH; POLES: DP3T; CIRCUITS: MOM-ON-MOM; CURRENT RATING: 6A (AC), 3A (DC); RATING (AC): 125V; RATING (DC): 30V; ACTUATOR TYPE: STANDARD ROUND; ACTUATOR LENGTH: 17.50MM; ILLUMINATION: NON-ILLUMINATED; MOUNTING TYPE: PANEL MOUNT; TERMINATION STYLE: SOLDER LUG; PANEL CUTOUT DIMENSIONS: CIRCULAR - 12.50MM DIA; BUSHING THREAD: M12 X 1; FEATURES: JUMPER NEEDED TO ACHIEVE TRIPLE THROW; RATING: 6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M2046B2B1W01 |
|---|---|
| Actuator Length [x] | 17.5 mm |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Bushing Thread | M12 |
| Bushing Thread | 1 x 1 |
| Circuit | DP3T |
| Current Rating (Amps) | 3 A, 6 A |
| Electrical Life | 25000 Steps |
| Features | Jumper needed to achieve triple throw |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 12.5 mm |
| Switch Function | Mom-On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M2046B2 Series
Toggle Switch DP3T Panel Mount
