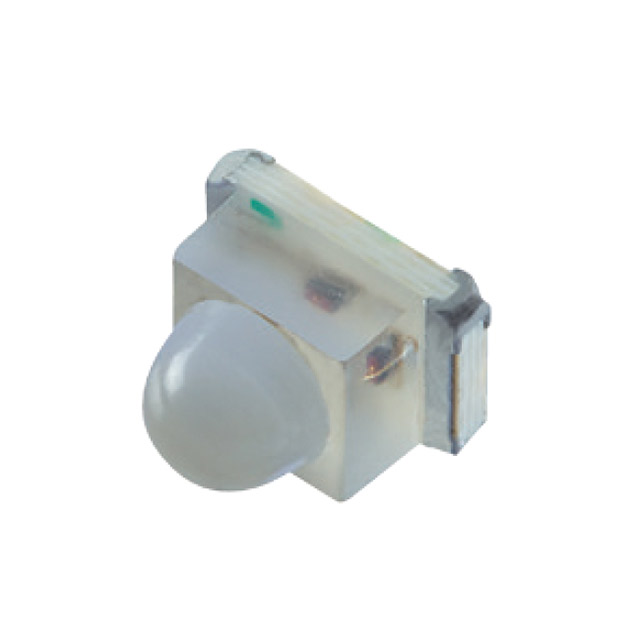

XZM2CYK50W-2
ActiveSunLED
LED YELLOW CLEAR 2SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZM2CYK50W-2
ActiveSunLED
LED YELLOW CLEAR 2SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZM2CYK50W-2 |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 2 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.9 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 2990 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 10 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 590 nm |
| Wavelength - Peak | 590 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.18 | |
| 6000 | $ 0.17 | |||
| 10000 | $ 0.16 | |||
| 50000 | $ 0.15 | |||
Description
General part information
XZM2CYK50 Series
Yellow 590nm LED Indication - Discrete 2V 2-SMD, No Lead
