MAF94118

Active

TE Connectivity Raychem Cable Protection

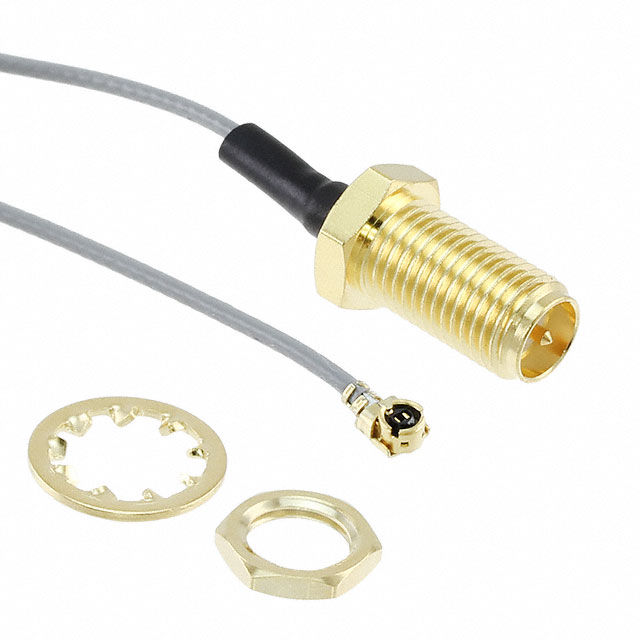

CBL ASSY UMCC-RP-SMA JK-P 7.165"

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CBL ASSY UMCC-RP-SMA JK-P 7.165"

Technical Specifications

Parameters and characteristics for this part

Specification	MAF94118

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	Right Angle, I-PEX MHF1 Plug, U.FL (UMCC)
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	1.13mm OD Coaxial Cable
Color	Gray
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	7.165 in
Length	182 mm
Style	U.FL (UMCC), I-PEX MHF1 to RP-SMA

Part	1st Contact Gender	Frequency - Max [Max]	Style	1st Connector Mounting Feature	1st Connector Mounting Type	Cable Type	Length	Length	Color	1st Connector	Features	2nd Contact Gender	2nd Connector Mounting Type	2nd Connector
TE Connectivity Raychem Cable Protection MAF94118	Male	6000 MHz	I-PEX MHF1 to RP-SMA U.FL (UMCC)	Bulkhead - Front Side Nut	Panel Mount	1.13mm OD Coaxial Cable	7.165 in	182 mm	Gray	RP-SMA Jack	Shielded	Female	Free Hanging (In-Line)	I-PEX MHF1 Plug Right Angle U.FL (UMCC)
TE Connectivity Raychem Cable Protection MAF94434	Male	6000 MHz	IPEX MHF1 RP-SMA U.FL (UMCC)	Bulkhead - Front Side Nut	Panel Mount	1.13mm OD Coaxial Cable	7.48 in	190 mm	Gray	RP-SMA Jack	Shielded	Female	Free Hanging (In-Line)	U.FL (UMCC) IPEX MHF1 Plug Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

LCSC	Piece	1	$ 1.49

General part information

Cable Assembly Coaxial U.FL (UMCC), I-PEX MHF1 to RP-SMA 1.13mm OD Coaxial Cable 7.165" (182.00mm)
