3GD-S
ActiveBivar Inc.

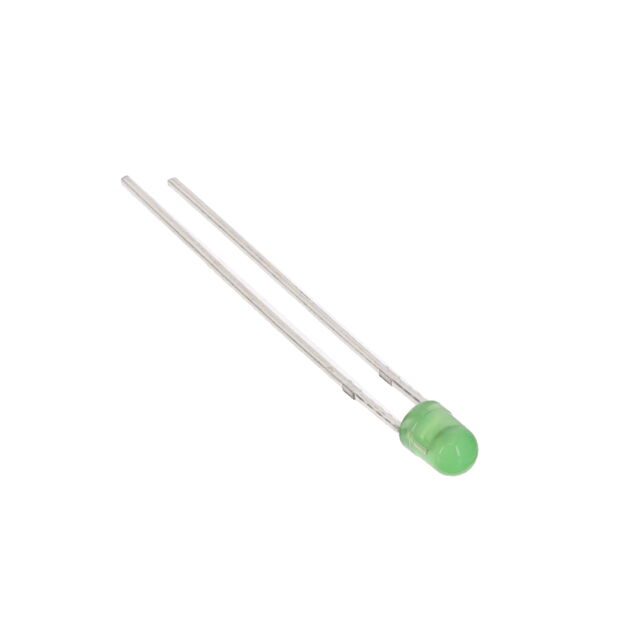

LED, THROUGH HOLE, 3MM, GREEN, 568NM, 25MCD, DIFFUSED LENS, 40 DEG VIEWING ANGLE / BAG
3GD-S
ActiveBivar Inc.
LED, THROUGH HOLE, 3MM, GREEN, 568NM, 25MCD, DIFFUSED LENS, 40 DEG VIEWING ANGLE / BAG
Description
General part information
3GD-S Series
Green LED Indication - Discrete 2.1V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 3GD-S |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 4.5 mm |
| Lens Color | Green |
| Lens Size | 3 mm |
| Lens Size (Code) | T-1 |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 25 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Package Name | T-1 |
| Viewing Angle | 40 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Peak | 568 nm |
