Q-1W02Z00080.5M

Active

Amphenol Custom Cable

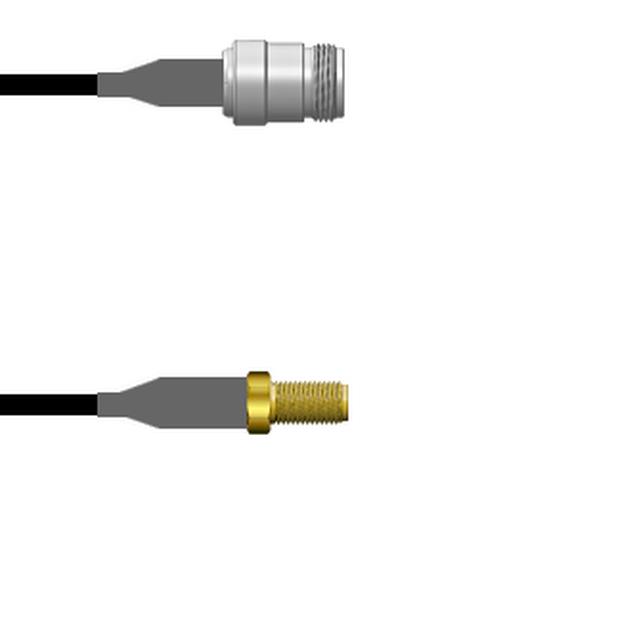

CBL ASSY SMA-NTYPE JK-JK 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1W02Z00080.5M

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JK-JK 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1W02Z00080.5M

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-1W02Z0 Series

Part	Features	2nd Connector	Style	1st Contact Gender	Frequency - Max [Max]	Cable Type	1st Connector Mounting Type	Length	Length	Length	Color	Overall Impedance	2nd Connector Mounting Type	1st Connector	2nd Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-1W02Z0008084i	Shielded	N-Type Jack	SMA to N-Type	Female	11 GHz	RG-58	Free Hanging (In-Line)	84 in	2.1 m	7 ft	Black	50 Ohms	Free Hanging (In-Line)	SMA Jack	Female
Amphenol Custom Cable Q-1W02Z0008060i	Shielded	N-Type Jack	SMA to N-Type	Female	11 GHz	RG-58	Free Hanging (In-Line)	5 '	1.5 m	5 ft	Black	50 Ohms	Free Hanging (In-Line)	SMA Jack	Female
Amphenol Custom Cable Q-1W02Z0008.75M	Shielded	N-Type Jack	SMA to N-Type	Female	11 GHz	RG-58	Free Hanging (In-Line)	29.53 "	750 mm		Black	50 Ohms	Free Hanging (In-Line)	SMA Jack	Female
Amphenol Custom Cable Q-1W02Z00080.5M	Shielded	N-Type Jack	SMA to N-Type	Female	11 GHz	RG-58	Free Hanging (In-Line)	19.69 "	50 cm		Black	50 Ohms	Free Hanging (In-Line)	SMA Jack	Female
Amphenol Custom Cable Q-1W02Z0008.25M	Shielded	N-Type Jack	SMA to N-Type	Female	11 GHz	RG-58	Free Hanging (In-Line)				Black	50 Ohms	Free Hanging (In-Line)	SMA Jack	Female	9.843 "	250 mm
Amphenol Custom Cable Q-1W02Z0008036i	Shielded	N-Type Jack	SMA to N-Type	Female	11 GHz	RG-58	Free Hanging (In-Line)	36 in	91.44 cm		Black	50 Ohms	Free Hanging (In-Line)	SMA Jack	Female
Amphenol Custom Cable Q-1W02Z0008012i	Shielded	N-Type Jack	SMA to N-Type	Female	11 GHz	RG-58	Free Hanging (In-Line)	12 "	304.8 mm		Black	50 Ohms	Free Hanging (In-Line)	SMA Jack	Female
Amphenol Custom Cable Q-1W02Z0008048i	Shielded	N-Type Jack	SMA to N-Type	Female	11 GHz	RG-58	Free Hanging (In-Line)	48 in	1200 mm	4 ft	Black	50 Ohms	Free Hanging (In-Line)	SMA Jack	Female
Amphenol Custom Cable Q-1W02Z00081.5M	Shielded	N-Type Jack	SMA to N-Type	Female	11 GHz	RG-58	Free Hanging (In-Line)	59.1 in	1.5 m	4.9 ft	Black	50 Ohms	Free Hanging (In-Line)	SMA Jack	Female
Amphenol Custom Cable Q-1W02Z0008006i	Shielded	N-Type Jack	SMA to N-Type	Female	11 GHz	RG-58	Free Hanging (In-Line)	6 in	152.4 mm		Black	50 Ohms	Free Hanging (In-Line)	SMA Jack	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 67.94
		25	$ 66.62
		50	$ 65.29
		100	$ 63.97
		250	$ 62.64

Description

General part information

Q-1W02Z0 Series

Cable Assembly Coaxial SMA to N-Type RG-58 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
