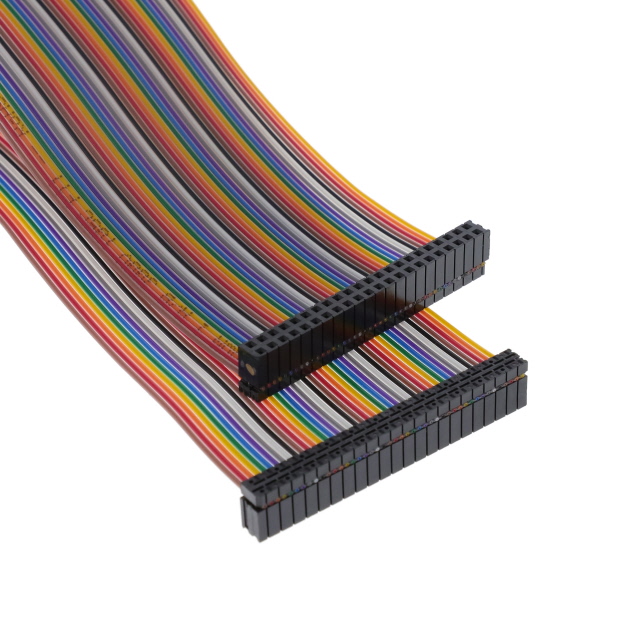

IDSD-22-D-12.00

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Search across all available documentation for this part.

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Technical Specifications

Parameters and characteristics for this part

Ribbon Cables / IDC Cables Slim Body Double-Row IDC Socket Assemblies, 0.100" Pitch

Part	Number of Rows	Color	Contact Finish	Pitch - Connector	Pitch - Connector	Number of Positions	Shielding	Length	Length	Length	Pitch - Cable	Pitch - Cable	Connector Type	Cable Termination	Length	Length [x]	Length [x]	Length [x]
Samtec Inc. IDSD-22-S-06.00	2	Multiple Ribbon	Gold	0.1 in	2.54 mm	44	Unshielded	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	Socket to Cable	IDC
Samtec Inc. IDSD-22-D-11.50-G	2		Gold	0.1 in	2.54 mm	44	Unshielded	292.1 mm	11.5 "		0.05 "	1.27 mm	Socket to Socket	IDC	0.958 '
Samtec Inc. IDSD-22-D-08.00	2	Multiple Ribbon	Gold	0.1 in	2.54 mm	44	Unshielded	203.2 mm	8 in		0.05 "	1.27 mm	Socket to Socket	IDC	0.667 ft
Samtec Inc. IDSD-22-D-12.00	2	Multiple Ribbon	Gold	0.1 in	2.54 mm	44	Unshielded	304.8 mm			0.05 "	1.27 mm	Socket to Socket	IDC	1 ft
Samtec Inc. IDSD-22-S-40.00	2	Multiple Ribbon	Gold	0.1 in	2.54 mm	44	Unshielded				0.05 "	1.27 mm	Socket to Cable	IDC		1.02 m	3.33 '
Samtec Inc. IDSD-22-S-05.20-T	2	Multiple Ribbon	Tin	0.1 in	2.54 mm	44	Unshielded	132.08 mm	5.2 in		0.05 "	1.27 mm	Socket to Cable	IDC	0.433 ft
Samtec Inc. IDSD-22-S-12.00-T-G-ST2	2		Tin	0.1 in	2.54 mm	44	Unshielded	304.8 mm			0.05 "	1.27 mm	Socket to Cable	IDC	1 ft
Samtec Inc. IDSD-22-D-04.00	2	Multiple Ribbon	Gold	0.1 in	2.54 mm	44	Unshielded				0.05 "	1.27 mm	Socket to Socket	IDC		101.6 mm	0.333 ft	4 "
Samtec Inc. IDSD-22-S-12.00-G	2		Gold	0.1 in	2.54 mm	44	Unshielded	304.8 mm			0.05 "	1.27 mm	Socket to Cable	IDC	1 ft
Samtec Inc. IDSD-22-S-10.00-G	2		Gold	0.1 in	2.54 mm	44	Unshielded	254 mm	10 in		0.05 "	1.27 mm	Socket to Cable	IDC	0.833 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ribbon Cables / IDC Cables Slim Body Double-Row IDC Socket Assemblies, 0.100" Pitch
