SGSMP4-400Q128

Active

BANNER ENGINEERING

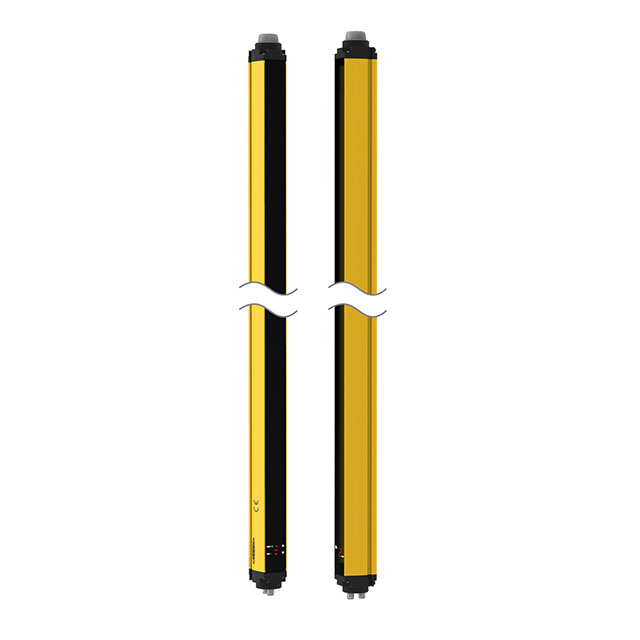

SGS SAFETY GRID SYSTEM, EMITTER/RECEIVER PAIR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SGS SAFETY GRID SYSTEM, EMITTER/RECEIVER PAIR

Technical Specifications

Parameters and characteristics for this part

Specification	SGSMP4-400Q128

Beam Pitch	400 mm
Features	Muting Function
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Beams [custom]	4
Operating Range [Max]	30 m
Operating Range [Min]	0.5 m
Protective Height	1200 mm
Voltage - Supply	24 VDC

Part	Number of Beams [custom]	Voltage - Supply	Beam Pitch	Ingress Protection	Features	Operating Range [Min]	Operating Range [Max]	Protective Height
BANNER ENGINEERING SGSMP4-300Q128	4	24 VDC	300 mm	IP65 - Dust Tight Water Resistant	Muting Function	0.5 m	30 m	900 mm
BANNER ENGINEERING SGSMP4-400Q128	4	24 VDC	400 mm	IP65 - Dust Tight Water Resistant	Muting Function	0.5 m	30 m	1200 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2034.01
Newark	Each	1	$ 2069.00

General part information

Light Curtain Muting Function
