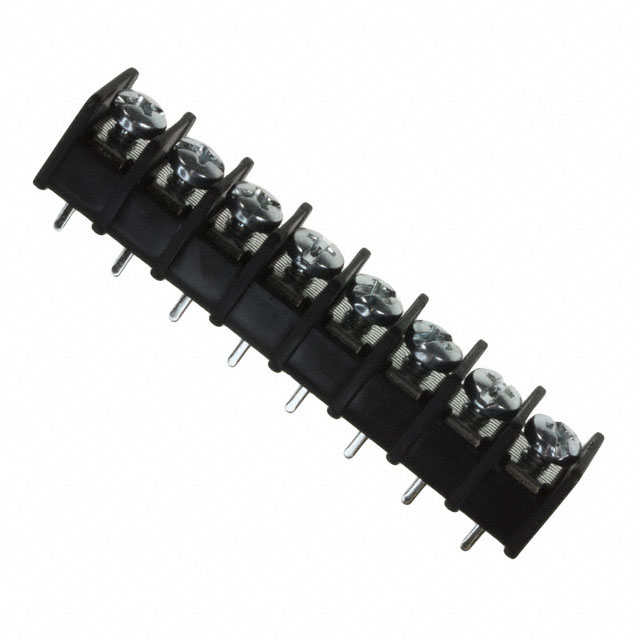

4DB-P107-08

Active

TE Connectivity Raychem Cable Protection

CONN BARRIER STRIP 8CIRC 0.325"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4DB-P107-08

Active

TE Connectivity Raychem Cable Protection

CONN BARRIER STRIP 8CIRC 0.325"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4DB-P107-08

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Color	Black
Current Rating (Amps)	20 A
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits [custom]	8
Number of Rows	1
Number of Wire Entries	8
Operating Temperature	105 C
Pitch [x]	8.26 mm
Pitch [x]	0.325 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Zinc, Clear Chromate
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	150 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

BUCHANAN 4DB Series Series

Part	Barrier Type	Terminal Screw Finish	Number of Wire Entries	Voltage Rating	Pitch [x]	Pitch [x]	Number of Circuits	Bottom Termination	Material - Insulation	Current Rating (Amps)	Terminal Block Type	Top Termination	Wire Gauge [Min]	Wire Gauge [Max]	Number of Rows	Terminal Screw Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Color	Material Flammability Rating	Operating Temperature	Number of Circuits [custom]
TE Connectivity Raychem Cable Protection 4DB-W207-03	2 Wall (Dual)	Tin	3	300 VDC	8.26 mm	0.325 in	3	Wire Wrap	Thermoplastic	10 A	Barrier Block	Screws with Captive Plate	12 AWG	22 AWG	1	Copper	-40 °C	105 ░C	Through Hole	Flange	Black	UL94 V-0
TE Connectivity Raychem Cable Protection 7-1437667-7	2 Wall (Dual)	Clear Chromate Zinc	15	150 VDC	8.26 mm	0.325 in	15	PC Pin	Thermoplastic	20 A	Barrier Block	Screws with Captive Plate	12 AWG	22 AWG	1	Steel	-40 °C	105 ░C	Through Hole Right Angle		Black	UL94 V-0
TE Connectivity Raychem Cable Protection 4DB-P108-09	2 Wall (Dual)	Clear Chromate Zinc	9	150 VDC	8.26 mm	0.325 in		PC Pin	Thermoplastic	20 A	Barrier Block	Screws with Captive Plate	12 AWG	22 AWG	1	Steel			Through Hole		Black	UL94 V-0	105 C
TE Connectivity Raychem Cable Protection 4DB-P207-06	2 Wall (Dual)	Clear Chromate Zinc	6	150 VDC	8.26 mm	0.325 in	6	PC Pin	Thermoplastic	20 A	Barrier Block	Screws	12 AWG	22 AWG	1	Steel	-40 °C	105 ░C	Chassis Panel Through Hole	Flange	Black	UL94 V-0
TE Connectivity Raychem Cable Protection 4DB-R107-08	2 Wall (Dual)	Clear Chromate Zinc	8	150 VDC	8.26 mm	0.325 in		PC Pin	Nylon Polyamide (PA)	20 A	Barrier Block	Screws	12 AWG	22 AWG	1	Steel	-40 °C	105 ░C	Through Hole Right Angle		Black	UL94 V-0		8
TE Connectivity Raychem Cable Protection 1-1546734-6	2 Wall (Dual)	Clear Chromate Zinc	16	300 VDC	8.26 mm	0.325 in	16	PC Pin	Nylon Polyamide (PA)	20 A	Barrier Block	Screws with Captive Plate	12 AWG	22 AWG	1	Steel			Through Hole		Black	UL94 V-0	105 C
TE Connectivity Raychem Cable Protection 4DB-P107-08	2 Wall (Dual)	Clear Chromate Zinc	8	150 VDC	8.26 mm	0.325 in		PC Pin	Nylon Polyamide (PA)	20 A	Barrier Block	Screws	12 AWG	22 AWG	1	Steel			Through Hole		Black	UL94 V-0	105 C	8
TE Connectivity Raychem Cable Protection 1546734-3	2 Wall (Dual)	Clear Chromate Zinc	3	300 VDC	8.26 mm	0.325 in	3	PC Pin	Nylon Polyamide (PA)	20 A	Barrier Block	Screws with Captive Plate	12 AWG	22 AWG	1	Steel			Through Hole		Black	UL94 V-0	105 C
TE Connectivity Raychem Cable Protection 4DB-P108-10	2 Wall (Dual)	Clear Chromate Zinc	10	150 VDC	8.26 mm	0.325 in	10	PC Pin	Thermoplastic	20 A	Barrier Block	Screws with Captive Plate	12 AWG	22 AWG	1	Steel			Through Hole		Black	UL94 V-0	105 C
TE Connectivity Raychem Cable Protection 6-1437667-9	2 Wall (Dual)	Clear Chromate Zinc	8	150 VDC	8.26 mm	0.325 in		PC Pin	Nylon Polyamide (PA)	20 A	Barrier Block	Screws	12 AWG	22 AWG	1	Steel	-40 °C	105 ░C	Through Hole Right Angle		Black	UL94 V-0		8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.53
		24	$ 5.72
		48	$ 5.57
		72	$ 5.45
		120	$ 5.12
		264	$ 5.09
		504	$ 4.76
		1008	$ 4.25

Description

General part information

BUCHANAN 4DB Series Series

8 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
