VLS3015CX-220M-1

Active

TDK Corporation

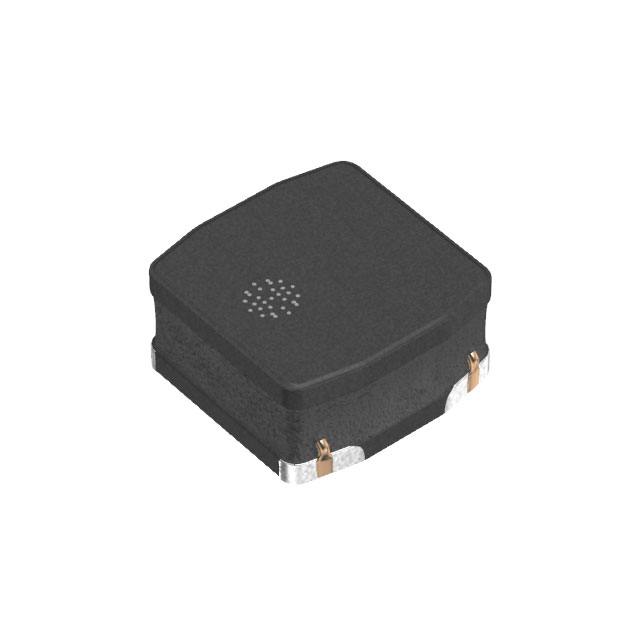

INDUCTOR POWER SHIELDED WIREWOUND 22UH 20% 1MHZ FERRITE 0.87A 0.496OHM DCR 1212 T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VLS3015CX-220M-1

Active

TDK Corporation

INDUCTOR POWER SHIELDED WIREWOUND 22UH 20% 1MHZ FERRITE 0.87A 0.496OHM DCR 1212 T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VLS3015CX-220M-1	VLS3015CX Series

Current - Saturation (Isat)	570 mA	1.07 - 920 mA
Current Rating (Amps)	0.87 A	0.5 - 900 mA
DC Resistance (DCR)	-	42 - 779 mOhm
DC Resistance (DCR) [Max]	496 mOhm	1.657 - 496 mOhm
Height - Seated (Max) [Max]	1.5 mm	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "	0.059 "
Inductance	22 µH	1 - 100 µH
Inductance Frequency - Test	1 MHz	1 MHz
Material - Core	Ferrite	Ferrite
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 ░C	105 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Nonstandard	Nonstandard
Ratings	-	AEC-Q200
Shielding	Shielded	Shielded
Size / Dimension [x]	0.118 in	0.118 in
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	3 mm	3 mm
Size / Dimension [y]	0.118 in	0.118 in
Supplier Device Package	3015	3015
Tolerance	20 %	20 %
Type	Wirewound, Drum Core	Wirewound, Drum Core

VLS3015CX Series

FIXED IND 10UH 900MA 0.286OHM SM

Part	Type	Ratings	Mounting Type	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	DC Resistance (DCR) [Max]	Tolerance	Current Rating (Amps)	Supplier Device Package	Material - Core	Package / Case	Inductance Frequency - Test	DC Resistance (DCR)
TDK Corporation VLS3015CX-100M-H	Drum Core, Wirewound	AEC-Q200	Surface Mount	10 µH	1.5 mm	0.059 "	670 mA	125 °C	-40 °C	Shielded	0.118 in	3 mm	3 mm	0.118 in	286 mOhm	20 %	900 mA	3015	Ferrite	Nonstandard	1 MHz
TDK Corporation VLS3015CX-6R8M-1	Drum Core, Wirewound		Surface Mount	6.8 µH	1.5 mm	0.059 "	1.07 A	105 ░C	-40 °C	Shielded	0.118 in	3 mm	3 mm	0.118 in	185 mOhm	20 %	1.5 A	3015	Ferrite	Nonstandard	1 MHz
TDK Corporation VLS3015CX-3R3M-H	Drum Core, Wirewound	AEC-Q200	Surface Mount	3.3 µH	1.5 mm	0.059 "	1.29 A	125 °C	-40 °C	Shielded	0.118 in	3 mm	3 mm	0.118 in		20 %	1.79 A	3015	Ferrite	Nonstandard	1 MHz
TDK Corporation VLS3015CX-150M-H	Drum Core, Wirewound	AEC-Q200	Surface Mount	15 µH	1.5 mm	0.059 "	570 mA	125 °C	-40 °C	Shielded	0.118 in	3 mm	3 mm	0.118 in		20 %	0.84 A	3015	Ferrite	Nonstandard	1 MHz	428 mOhm
TDK Corporation VLS3015CX-220M-1	Drum Core, Wirewound		Surface Mount	22 µH	1.5 mm	0.059 "	570 mA	105 ░C	-40 °C	Shielded	0.118 in	3 mm	3 mm	0.118 in	496 mOhm	20 %	0.87 A	3015	Ferrite	Nonstandard	1 MHz
TDK Corporation VLS3015CX-100M-1	Drum Core, Wirewound		Surface Mount	10 µH	1.5 mm	0.059 "	920 mA	105 ░C	-40 °C	Shielded	0.118 in	3 mm	3 mm	0.118 in	287 mOhm	20 %	1.17 A	3015	Ferrite	Nonstandard	1 MHz
TDK Corporation VLS3015CX-1R5M-H	Drum Core, Wirewound	AEC-Q200	Surface Mount	1.5 µH	1.5 mm	0.059 "	1.73 A	125 °C	-40 °C	Shielded	0.118 in	3 mm	3 mm	0.118 in	54 mOhm	20 %	2.4 A	3015	Ferrite	Nonstandard	1 MHz
TDK Corporation VLS3015CX-1R0M-H	Drum Core, Wirewound	AEC-Q200	Surface Mount	1 µH	1.5 mm	0.059 "	2.3 A	125 °C	-40 °C	Shielded	0.118 in	3 mm	3 mm	0.118 in	38 mOhm	20 %	2.96 A	3015	Ferrite	Nonstandard	1 MHz
TDK Corporation VLS3015CX-330M-1	Drum Core, Wirewound		Surface Mount	33 µH	1.5 mm	0.059 "	470 mA	105 ░C	-40 °C	Shielded	0.118 in	3 mm	3 mm	0.118 in		20 %	750 mA	3015	Ferrite	Nonstandard	1 MHz	779 mOhm
TDK Corporation VLS3015CX-3R3M-1	Drum Core, Wirewound		Surface Mount	3.3 µH	1.5 mm	0.059 "	1.66 A	105 ░C	-40 °C	Shielded	0.118 in	3 mm	3 mm	0.118 in		20 %	2.03 A	3015	Ferrite	Nonstandard	1 MHz	100 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.32
		10	$ 0.25
		25	$ 0.22
		50	$ 0.21
		100	$ 0.19
		250	$ 0.17
		500	$ 0.16
		1000	$ 0.15
	Digi-Reel®	1	$ 0.32
		10	$ 0.25
		25	$ 0.22
		50	$ 0.21
		100	$ 0.19
		250	$ 0.17
		500	$ 0.16
		1000	$ 0.15
	Tape & Reel (TR)	2000	$ 0.14
		4000	$ 0.13
		6000	$ 0.12
		10000	$ 0.12
		14000	$ 0.11
		20000	$ 0.11
		50000	$ 0.10

Description

General part information

VLS3015CX Series

22 µH Shielded Drum Core, Wirewound Inductor 870 mA 496mOhm Max Nonstandard
