T1339160120-000
ActiveTE Connectivity AMP Connectors
H16A-TSH-M20
Deep-Dive with AI
Search across all available documentation for this part.
T1339160120-000
ActiveTE Connectivity AMP Connectors
H16A-TSH-M20
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1339160120-000 | T133 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H16A | H6B, H16B, H10B, H16A, H24B |
| Size / Dimension [x] | 3.118 in | 2.362 - 4.724 in |
| Size / Dimension [x] | 79.2 mm | 60 - 120 mm |
| Size / Dimension [y] | 1.169 in | 1.169 - 1.693 in |
| Size / Dimension [y] | 29.7 mm | 29.7 - 43 mm |
| Size / Dimension [z] | 72.2 mm | 60 - 76 mm |
| Size / Dimension [z] | 2.843 in | 2.362 - 2.992 " |
| Style | Side Entry | Side Entry |
| Thread Size | M20 | PG29, M32, M20, PG11, M25, NPT-3/4, PG16, PG21 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.24 | |
| 14 | $ 6.55 | |||
| 28 | $ 6.37 | |||
| 56 | $ 6.13 | |||
| 105 | $ 6.10 | |||
T133 Series
H6B-TSH-PG29
| Part | Housing Color | Housing Finish | Style | Lock Location | Size | Ingress Protection | Connector Type | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1330060129-000 | Gray | Powder Coated | Side Entry | Locking Clip (1) on Base Bottom | H6B | IP65 - Dust Tight, Water Resistant | Hood | PG29 | 125 °C | -40 °C | 1.693 in | 43 mm | 60 mm | 60 mm | 2.362 " | 2.362 in | Aluminum Alloy, Die Cast |
TE Connectivity AMP Connectors T1330160140-000 | Gray | Powder Coated | Side Entry | Locking Clip (1) on Base Bottom | H16B | IP65 - Dust Tight, Water Resistant | Hood | 125 °C | -40 °C | 1.693 in | 43 mm | 93.5 mm | 76 mm | 2.992 in | 3.681 " | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1330100132-000 | Gray | Powder Coated | Side Entry | Locking Clip (1) on Base Bottom | H10B | IP65 - Dust Tight, Water Resistant | Hood | M32 | 125 °C | -40 °C | 1.693 in | 43 mm | 73 mm | 72 mm | 2.835 in | 2.874 in | Aluminum Alloy, Die Cast |
TE Connectivity AMP Connectors T1330100120-000 | Gray | Powder Coated | Side Entry | Locking Clip (1) on Base Bottom | H10B | IP65 - Dust Tight, Water Resistant | Hood | M20 | 125 °C | -40 °C | 1.693 in | 43 mm | 73 mm | 72 mm | 2.835 in | 2.874 in | Aluminum Alloy, Die Cast |
TE Connectivity AMP Connectors T1339160111-000 | Gray | Powder Coated | Side Entry | Locking Clip (1) on Base Bottom | H16A | IP65 - Dust Tight, Water Resistant | Hood | PG11 | 125 °C | -40 °C | 1.169 in | 29.7 mm | 79.2 mm | 72.2 mm | 2.843 in | 3.118 in | Aluminum Alloy, Die Cast |
TE Connectivity AMP Connectors T1330240125-000 | Gray | Powder Coated | Side Entry | Locking Clip (1) on Base Bottom | H24B | IP65 - Dust Tight, Water Resistant | Hood | M25 | 125 °C | -40 °C | 1.693 in | 43 mm | 120 mm | 76 mm | 2.992 in | 4.724 " | Aluminum Alloy, Die Cast |
TE Connectivity AMP Connectors T1330107134-000 | Gray | Powder Coated | Side Entry | Locking Clip (1) on Base Bottom | H10B | IP65 - Dust Tight, Water Resistant | Hood | NPT-3/4 | 125 °C | -40 °C | 1.693 in | 43 mm | 73 mm | 72 mm | 2.835 in | 2.874 in | Aluminum Alloy, Die Cast |
TE Connectivity AMP Connectors T1330060116-000 | Gray | Powder Coated | Side Entry | Locking Clip (1) on Base Bottom | H6B | IP65 - Dust Tight, Water Resistant | Hood | PG16 | 125 °C | -40 °C | 1.693 in | 43 mm | 60 mm | 72 mm | 2.835 in | 2.362 in | Aluminum Alloy, Die Cast |
TE Connectivity AMP Connectors T1339160120-000 | Gray | Powder Coated | Side Entry | Locking Clip (1) on Base Bottom | H16A | IP65 - Dust Tight, Water Resistant | Hood | M20 | 125 °C | -40 °C | 1.169 in | 29.7 mm | 79.2 mm | 72.2 mm | 2.843 in | 3.118 in | Aluminum Alloy, Die Cast |
TE Connectivity AMP Connectors T1330160132-000 | Gray | Powder Coated | Side Entry | Locking Clip (1) on Base Bottom | H16B | IP65 - Dust Tight, Water Resistant | Hood | M32 | 125 °C | -40 °C | 1.693 in | 43 mm | 93.5 mm | 76 mm | 2.992 in | 3.681 " | Aluminum Alloy, Die Cast |
TE Connectivity AMP Connectors T1339160121-000 | Gray | Powder Coated | Side Entry | Locking Clip (1) on Base Bottom | H16A | IP65 - Dust Tight, Water Resistant | Hood | PG21 | 125 °C | -40 °C | 1.169 in | 29.7 mm | 79.2 mm | 72.2 mm | 2.843 in | 3.118 in | Aluminum Alloy, Die Cast |
Description
General part information
T133 Series

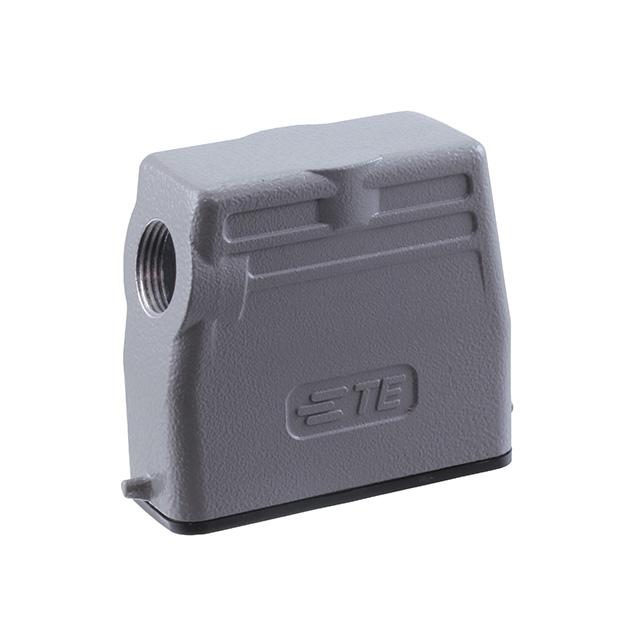

Hood Connector Side Entry M20 H16A IP65 - Dust Tight, Water Resistant
