8790 060U1000

Active

Belden Inc.

1 PR #18 PVC BRD PVC

Search across all available documentation for this part.

Active

Belden Inc.

1 PR #18 PVC BRD PVC

Technical Specifications

Parameters and characteristics for this part

Specification	8790 060U1000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.241 in
Jacket (Insulation) Diameter [diameter]	6.12 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.028 in
Jacket (Insulation) Thickness	0.711 mm
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style CMG
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Spiral
Usage	Audio, Signal, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Number of Conductors	Jacket (Insulation) Material	Jacket Color	Usage	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Conductor Material	Wire Gauge	Shield Coverage	Length	Length	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Cable Type	Length [x]	Length [x]
Belden Inc. 8790 060U1000	26 AWG	7	Spiral	2	Poly-Vinyl Chloride (PVC)	Chrome	Audio Control Signal	Poly-Vinyl Chloride (PVC)	-20 C	60 °C	0.241 in	6.12 mm	UL Style CMG	Copper Tinned	18 AWG	85 %	1000 ft	304.8 m	Copper Tinned	0.028 in	0.711 mm	300 V	Multi-Conductor
Belden Inc. 8790 060500	26 AWG	7	Spiral	2	Poly-Vinyl Chloride (PVC)	Chrome	Audio Control Signal	Poly-Vinyl Chloride (PVC)	-20 C	60 °C	0.241 in	6.12 mm	UL Style CMG	Copper Tinned	18 AWG	85 %			Copper Tinned	0.028 in	0.711 mm	300 V	Multi-Conductor	500 '	152.4 m
Belden Inc. 8790 0605000	26 AWG	7	Spiral	2	Poly-Vinyl Chloride (PVC)	Chrome	Audio Control Signal	Poly-Vinyl Chloride (PVC)	-20 C	60 °C	0.241 in	6.12 mm	UL Style CMG	Copper Tinned	18 AWG	85 %			Copper Tinned	0.028 in	0.711 mm	300 V	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.78

General part information

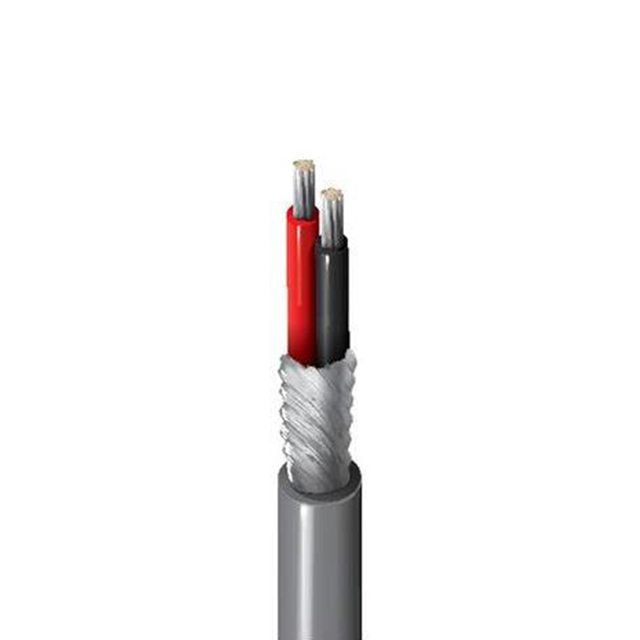

2 (1 Pair) Conductor Multi-Conductor Cable Chrome 18 AWG Spiral 1000.0' (304.8m)
