BMC150-SHUTL

Obsolete

Bosch Sensortec

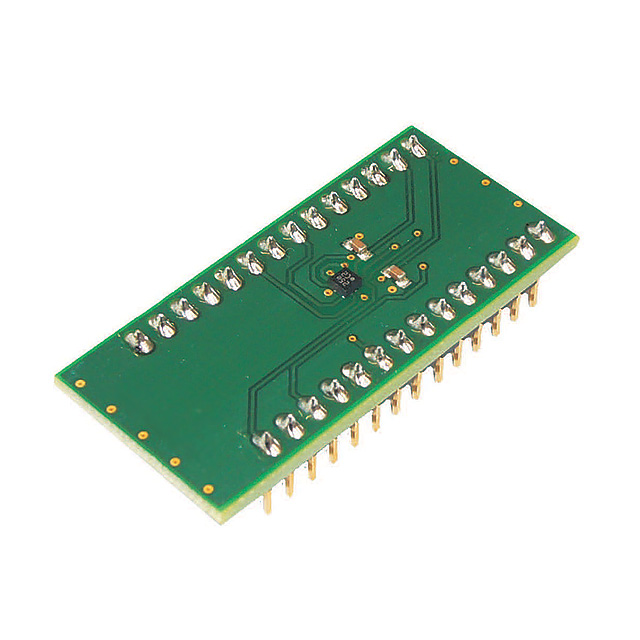

SHUTTLE BOARD BMC150

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SHUTTLE BOARD BMC150

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMC150-SHUTL	BMC150 Series

Contents	Board(s)	Board(s)
Function	Accelerometer	Accelerometer
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	I2C, SPI
Package / Case	-	14-VFLGA Module
Sensor Type	-	6 Axis, Accelerometer, Magnetometer
Supplier Device Package	-	14-LGA
Type	Sensor	Sensor
Utilized IC / Part	BMC150	BMC150

SHUTTLE BOARD BMC150

Part	Utilized IC / Part	Type	Function	Contents	Mounting Type	Sensor Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Output Type
Bosch Sensortec BMC150-SHUTL	BMC150	Sensor	Accelerometer	Board(s)
Bosch Sensortec BMC150					Surface Mount	6 Axis, Accelerometer, Magnetometer	14-VFLGA Module	85 °C	-40 °C	14-LGA	I2C, SPI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BMC150 Accelerometer Sensor Platform Evaluation Expansion Board

Technical documentation and resources

No documents available
