1194 7.7"X10"

Active

RF EMI SHIELDING TAPE 10" X 7.7"

Search across all available documentation for this part.

Active

RF EMI SHIELDING TAPE 10" X 7.7"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1194 7.7"X10"	1194 Series

Adhesive	Single Sided, Non-Conductive	Single Sided, Non-Conductive, Acrylic
Backing, Carrier	-	Copper Foil
Color	-	Natural
Length	10 in	10 - 108.005 ft
Length	254 mm	32.9 - 254 m
Length	-	36 yd
Material	Copper Foil	Copper Foil
Shelf Life	-	60 Months
Shelf Life Start	-	Date of Manufacture
Tape Type	-	Copper Foil
Thickness - Backing, Carrier	-	0.0014 in
Thickness - Backing, Carrier	-	1.4 mils
Thickness - Backing, Carrier	-	0.035 mm
Thickness - Overall	0.003 "	0.003 "
Thickness - Overall	0.07 mm	0.07 mm
Type	Shielding Tape	Shielding Tape
Usage	-	EMI Shielding
Width	7.7 in	0.25 - 7.7 in
Width	195 mm	6.35 - 195 mm
Width	-	0.47 - 6 in
Width	-	12 - 152.4 mm
Width	-	107.95 mm
Width	-	1 1/2

RF EMI SHLDING TAPE 36YDSX0.25"

Part	Adhesive	Material	Thickness - Overall	Thickness - Overall	Width	Width	Length	Length	Type	Length	Shelf Life	Usage	Backing, Carrier	Shelf Life Start	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Color	Tape Type	Width [x]	Width [x]	Width	Width
3M 1194-1/4"X36YD	Non-Conductive, Single Sided	Copper Foil	0.003 "	0.07 mm	0.25 in	6.35 mm	108.005 ft	32.92 m	Shielding Tape
3M 1194 .6"X36YD	Acrylic						108 ft	32.9 m		36 yd	60 Months	EMI Shielding	Copper Foil	Date of Manufacture	0.0014 in	1.4 mils	0.035 mm	Natural	Copper Foil	6 in	152.4 mm
3M 1194 12MMX33MMC19	Acrylic						108 ft	32.9 m		36 yd	60 Months	EMI Shielding	Copper Foil	Date of Manufacture	0.0014 in	1.4 mils	0.035 mm	Natural	Copper Foil	0.47 in	12 mm
3M 1194-1/2"X36YD	Non-Conductive, Single Sided	Copper Foil	0.003 "	0.07 mm			108.005 ft	32.92 m	Shielding Tape
3M 1194 25MMX33MMC9	Acrylic				0.98 "	25 mm	108 ft	32.9 m		36 yd	60 Months	EMI Shielding	Copper Foil	Date of Manufacture	0.0014 in	1.4 mils	0.035 mm	Natural	Copper Foil
3M 1194 7.7"X10"	Non-Conductive, Single Sided	Copper Foil	0.003 "	0.07 mm	7.7 in	195 mm	10 in	254 mm	Shielding Tape
3M 1194-3/4"X36YD	Non-Conductive, Single Sided	Copper Foil	0.003 "	0.07 mm	0.75 in	19.1 mm	108.005 ft	32.92 m	Shielding Tape		60 Months			Date of Manufacture
3M 1194 4.25"X36YD	Acrylic				4.25 in		108 ft	32.9 m		36 yd	60 Months	EMI Shielding	Copper Foil	Date of Manufacture	0.0014 in	1.4 mils	0.035 mm	Natural	Copper Foil			107.95 mm
3M 1194 1.5"X36YD	Acrylic				1.5 "	38.1 mm	108 ft	32.9 m		36 yd	60 Months	EMI Shielding	Copper Foil	Date of Manufacture	0.0014 in	1.4 mils	0.035 mm	Natural	Copper Foil				1 1/2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

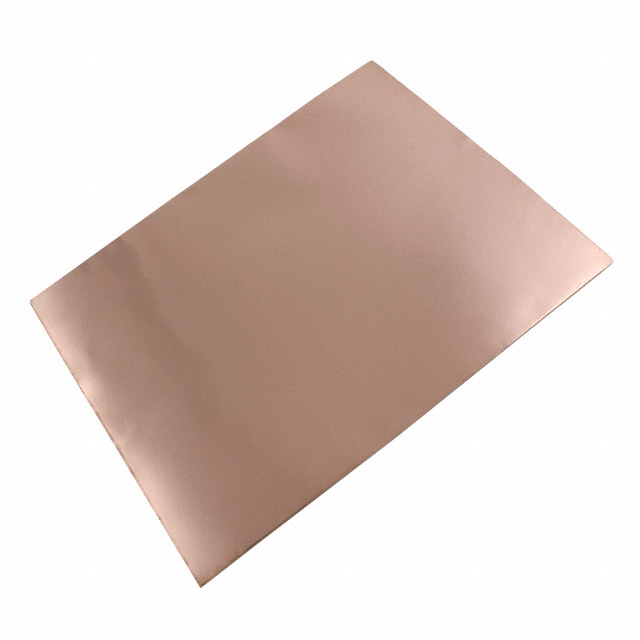

RF EMI Shielding Tape 1194 Copper Foil Non-Conductive, Single Sided 7.700" (195.00mm) X 10.000" (254.00mm) X 0.003" (0.07mm)
