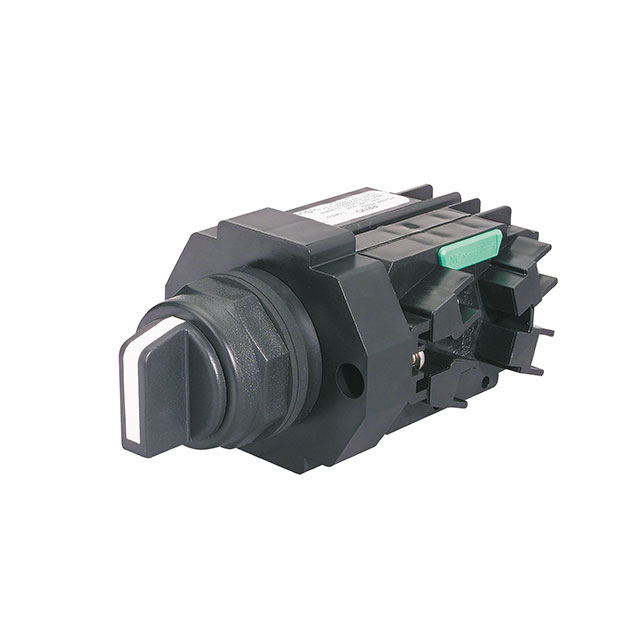

HSSO3-SHWE-CBFSR/CBFSR

Active

c3controls

SWITCH SELECT 3POS 4PST 10A 72V

Search across all available documentation for this part.

Active

c3controls

SWITCH SELECT 3POS 4PST 10A 72V

Technical Specifications

Parameters and characteristics for this part

Specification	HSSO3-SHWE-CBFSR/CBFSR

Approval Agency	UR, CSA, CE, cULus
Circuit	4PST-2NO/2NC
Current Rating (Amps)	10 A, 5 A
Depth Behind Flange	82.6 mm
Illumination	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	500000 Cycles
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	30 mm
Switch Function	On-Off-On
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	72 V
Voltage Rating - DC	28 V

SWITCH SELECT 3POS 4PST 10A 72V

Part	Voltage Rating - AC	Depth Behind Flange	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Mechanical Life	Illumination	Type	Termination Style	Approval Agency	Switch Function	Voltage Rating - DC	Current Rating (Amps)	Ingress Protection	Circuit
c3controls HSSO3-SHWE-CBFSR/CBFSR	72 V	82.6 mm	-40 °C	55 °C	30 mm	500000 Cycles	Non-Illuminated	Standard	Screw Terminal	CE, CSA, cULus, UR	On-Off-On	28 V	5 A, 10 A	IP65 - Dust Tight, Water Resistant	4PST-2NO/2NC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 131.97

General part information

Selector Switch 3 Position 4PST-2NO/2NC 10A (AC), 5A (DC) 72 V Panel Mount
