SW43 BK008

Active

ALPHA WIRE

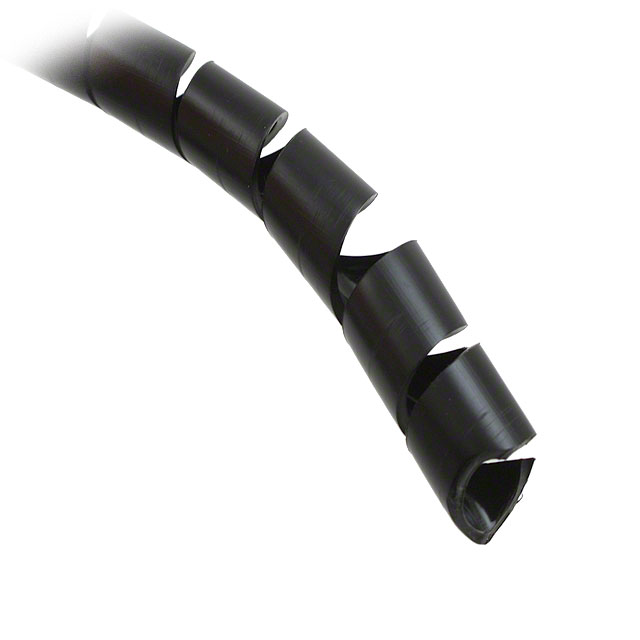

SPIRAL WRAP 0.376" X 25' BLACK

Search across all available documentation for this part.

Active

ALPHA WIRE

SPIRAL WRAP 0.376" X 25' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	SW43 BK008

Color	Black
Diameter - Inside, Non-Expanded [diameter]	0.376 in
Diameter - Inside, Non-Expanded [diameter]	9.55 mm
Diameter - Outside, Non-Expanded [diameter]	0.5 in
Diameter - Outside, Non-Expanded [diameter]	12.7 mm
Environment Protection	UV Resistant
Length [x]	25 ft
Length [x]	7.62 m
Liquid Protection	Moisture Resistant
Material	Polyethylene (PE)
Operating Temperature [custom]	-66 °C, 88 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness	1.57 mm
Wall Thickness	0.062 in

SPIRAL WRAP 0.376" X 25' BLACK

Part	Type	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Environment Protection	Wall Thickness	Wall Thickness	Type Attributes	Color	Operating Temperature [custom]	Length [x]	Length [x]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Liquid Protection	Material
ALPHA WIRE SW43 BK008	Spiral Wrap	0.376 in	9.55 mm	UV Resistant	1.57 mm	0.062 in	Harness	Black	-66 °C, 88 °C	25 ft	7.62 m	0.5 in	12.7 mm	Moisture Resistant	Polyethylene (PE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Spiral Wrap 0.500" (12.70mm) X 25.00' (7.62m) Black

Technical documentation and resources
