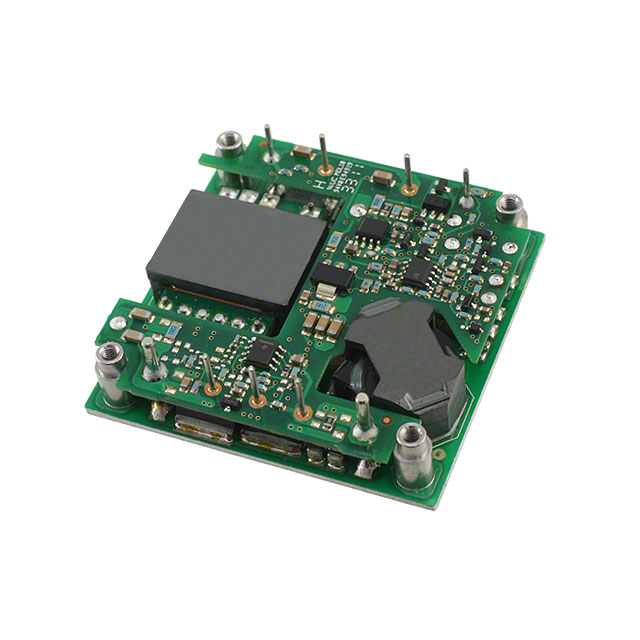

JNCW016A0R41-18Z
ActiveOmniOn Power™
DC DC CONVERTER 28V 448W
Deep-Dive with AI
Search across all available documentation for this part.
JNCW016A0R41-18Z
ActiveOmniOn Power™
DC DC CONVERTER 28V 448W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JNCW016A0R41-18Z |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 16 A |
| Efficiency | 93.5 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9-DIP Module |
| Power (Watts) | 448 W |
| Size / Dimension [x] | 2.39 " |
| Size / Dimension [x] | 60.7 mm |
| Size / Dimension [y] | 57.7 mm |
| Size / Dimension [y] | 2.27 in |
| Size / Dimension [z] | 0.5 in |
| Size / Dimension [z] | 12.7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 320 | $ 69.69 | |
Description
General part information
JNCW016 Series
Isolated Module DC DC Converter 1 Output 28V 16A 36V - 75V Input
Documents
Technical documentation and resources
No documents available
