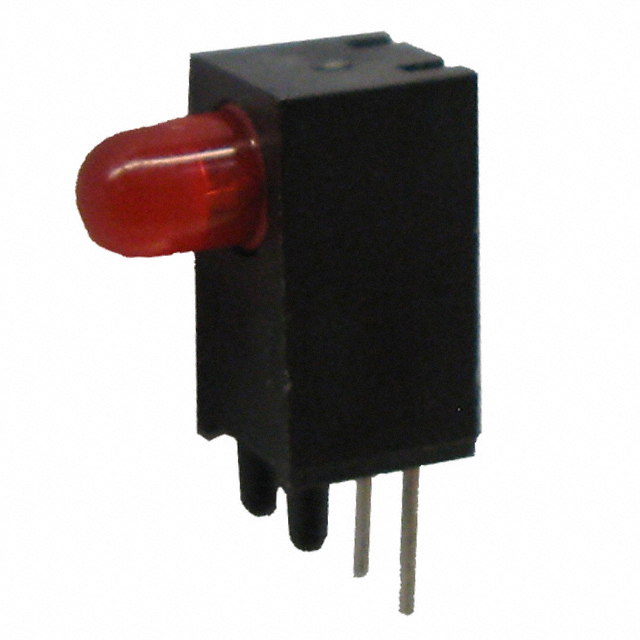

XPV1LUR147D

Active

SunLED

LED CBI 2.9MM RED DIFF RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XPV1LUR147D

Active

SunLED

LED CBI 2.9MM RED DIFF RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XPV1LUR147D

Color	Red
Configuration	Single
Current	160 mA
Lens Size [diameter]	2.9 mm
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	11 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle [custom]	40 °
Voltage Rating	1.9 V
Wavelength - Peak	627 nm

XPV1LUR147 Series

Part	Voltage Rating	Current	Lens Size [diameter]	Color	Wavelength - Peak	Lens Style	Millicandela Rating	Configuration	Viewing Angle [custom]	Lens Type	Mounting Type
SunLED XPV1LUR147D	1.9 V	160 mA	2.9 mm	Red	627 nm	Round with Domed Top	11 mcd	Single	40 °	Diffused Tinted	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 0.23

Description

General part information

XPV1LUR147 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 1.9V 160mA Round with Domed Top 2.90mm Dia Through Hole, Right Angle
