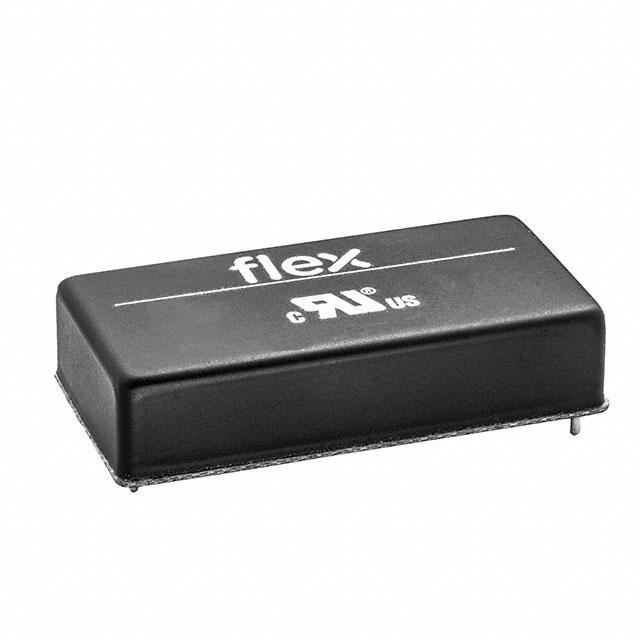

PKE7316ZAPI

Active

Flex Power Modules

DC DC CONVERTER 24V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PKE7316ZAPI

Active

Flex Power Modules

DC DC CONVERTER 24V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PKE7316ZAPI

Applications	Railway, ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	1.25 A
Efficiency	90 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	30 W
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	11.9 mm
Size / Dimension [z]	0.47 "
Type	Isolated Module
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	43 V
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

PKE731 Series

Part	Number of Outputs	Type	Features	Voltage - Input (Max) [Max]	Applications	Current - Output (Max) [Max]	Efficiency	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Control Features	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Isolation
Flex Power Modules PKE7313API	1	Isolated Module	Adjustable Output Remote On/Off Remote Sense	160 V	ITE (Commercial) Railway	2.5 A	90 %	12 V	110 °C	-40 °C	Through Hole	Active Low Enable	6-DIP Module	25.4 mm	50.8 mm	11.9 mm	0.47 "	2 in	25.4 mm	43 V	30 W	3000 V
Flex Power Modules PKE7316ZAPI	1	Isolated Module	Adjustable Output Remote On/Off Remote Sense	160 V	ITE (Commercial) Railway	1.25 A	90 %	24 V	110 °C	-40 °C	Through Hole	Active Low Enable	6-DIP Module	25.4 mm	50.8 mm	11.9 mm	0.47 "	2 in	25.4 mm	43 V	30 W	3000 V
Flex Power Modules PKE7315API	1	Isolated Module	Adjustable Output Remote On/Off Remote Sense	160 V	ITE (Commercial) Railway	2 A	91 %	15 V	110 °C	-40 °C	Through Hole	Active Low Enable	6-DIP Module	25.4 mm	50.8 mm	11.9 mm	0.47 "	2 in	25.4 mm	43 V	30 W	3000 V
Flex Power Modules PKE7311API	1	Isolated Module	Adjustable Output Remote On/Off Remote Sense	160 V	ITE (Commercial) Railway	6 A	91 %	5 V	110 °C	-40 °C	Through Hole	Active Low Enable	6-DIP Module	25.4 mm	50.8 mm	11.9 mm	0.47 "	2 in	25.4 mm	43 V	30 W	3000 V
Flex Power Modules PKE7316JAPI	1	Isolated Module	Adjustable Output Remote On/Off Remote Sense	160 V	ITE (Commercial) Railway	625 mA	91 %	48 V	110 °C	-40 °C	Through Hole	Active Low Enable	6-DIP Module	25.4 mm	50.8 mm	11.9 mm	0.47 "	2 in	25.4 mm	43 V	30 W	3000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 31.08

Description

General part information

PKE731 Series

Isolated Module DC DC Converter 1 Output 24V 1.25A 43V - 160V Input

Documents

Technical documentation and resources
