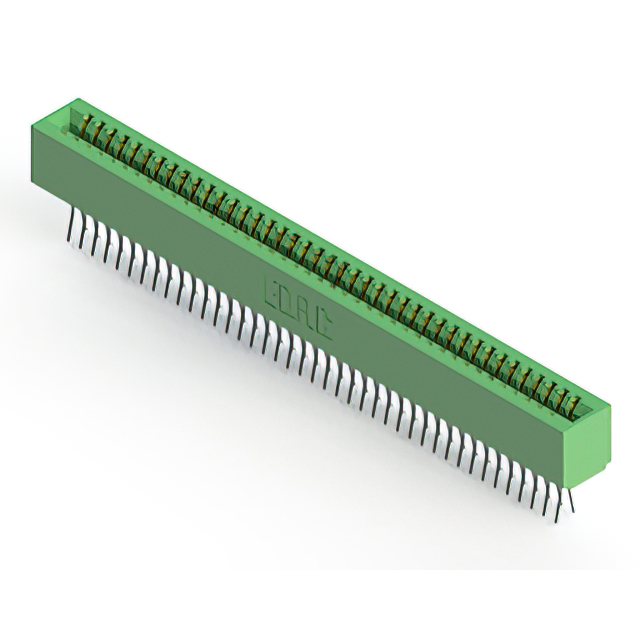

341-082-560-201

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 82 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

341-082-560-201

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 82 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-082-560-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Extender
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	82
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

341-082 Series

Part	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Contact Type	Contact Finish	Termination Rows	Mounting Type	Termination	Material - Insulation	Contact Material	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Gender	Number of Positions	Features
EDAC Inc. 341-082-524-202	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Semi Bellows	Gold	2	Through Hole	Solder	Polyester Thermoplastic	Copper Alloy	2	10 Áin	0.25 Ám	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	2.54 mm	0.1 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female	82
EDAC Inc. 341-082-522-208	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Semi Bellows	Gold	2	Through Hole	Solder	Polyester Thermoplastic	Copper Alloy	2	10 Áin	0.25 Ám			4-40 Flush Mount Threaded Insert Top Opening	2.54 mm	0.1 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female	82
EDAC Inc. 341-082-556-204	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Semi Bellows	Gold	2	Through Hole	Solder	Polyester Thermoplastic	Copper Alloy	2	10 Áin	0.25 Ám	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	2.54 mm	0.1 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female	82	Card Extender
EDAC Inc. 341-082-522-202	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Semi Bellows	Gold	2	Through Hole	Solder	Polyester Thermoplastic	Copper Alloy	2	10 Áin	0.25 Ám	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	2.54 mm	0.1 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female	82
EDAC Inc. 341-082-524-208	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Semi Bellows	Gold	2	Through Hole	Solder	Polyester Thermoplastic	Copper Alloy	2	10 Áin	0.25 Ám			4-40 Flush Mount Threaded Insert Top Opening	2.54 mm	0.1 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female	82
EDAC Inc. 341-082-500-201	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Semi Bellows	Gold	2	Through Hole	Solder Eyelet(s)	Diallyl Phthalate (DAP)	Copper Alloy	2	10 Áin	0.25 Ám				2.54 mm	0.1 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female	82
EDAC Inc. 341-082-500-203	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Semi Bellows	Gold	2	Through Hole	Solder Eyelet(s)	Diallyl Phthalate (DAP)	Copper Alloy	2	10 Áin	0.25 Ám	2.95 mm	0.116 in	Floating Bobbin Flush Mount	2.54 mm	0.1 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female	82
EDAC Inc. 341-082-556-201	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Semi Bellows	Gold	2	Board Edge Straddle Mount	Solder	Polyester Thermoplastic	Copper Alloy	2	10 Áin	0.25 Ám				2.54 mm	0.1 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female	82	Card Extender
EDAC Inc. 341-082-560-201	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Semi Bellows	Gold	2	Board Edge Straddle Mount	Solder	Polyester Thermoplastic	Copper Alloy	2	10 Áin	0.25 Ám				2.54 mm	0.1 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female	82	Card Extender
EDAC Inc. 341-082-524-203	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Semi Bellows	Gold	2	Through Hole	Solder	Polyester Thermoplastic	Copper Alloy	2	10 Áin	0.25 Ám	2.95 mm	0.116 in	Floating Bobbin Flush Mount	2.54 mm	0.1 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female	82

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 18.10
Newark	Each	1	$ 20.21
		100	$ 12.47
		250	$ 10.93
		500	$ 8.85
		1000	$ 7.61

Description

General part information

341-082 Series

82 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
