ZW-18-13-T-D-826-236

Active

Samtec Inc.

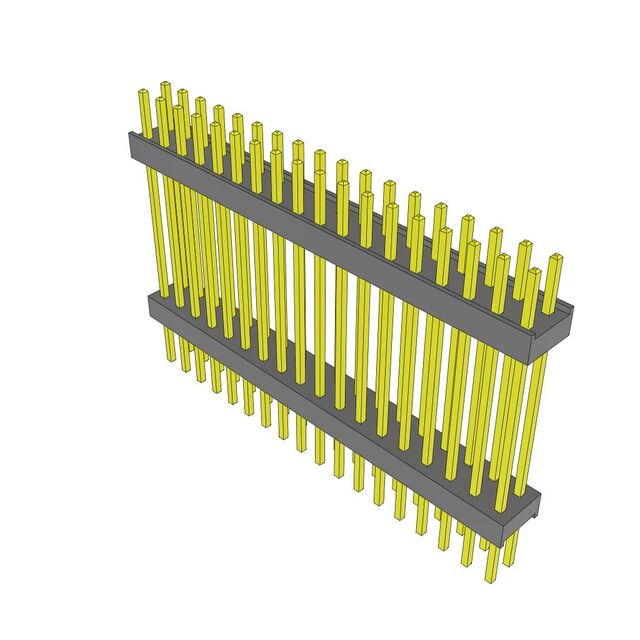

CONN BRD STACK .100" 36POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch +1

ZW-18-13-T-D-826-236

Active

Samtec Inc.

CONN BRD STACK .100" 36POS

Deep-Dive with AI

DocumentsDatasheet Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZW-18-13-T-D-826-236

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin [x]	31.242 mm
Length - Overall Pin [x]	1.23 in
Length - Post (Mating) [x]	0.168 in
Length - Post (Mating) [x]	4.267 mm
Length - Stack Height [z]	0.826 in
Length - Stack Height [z]	20.98 mm
Length - Tail [custom]	0.236 in
Length - Tail [custom]	5.994 mm
Mounting Type	Through Hole
Number of Positions	36
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

ZW-18-13 Series

Part	Termination	Number of Positions	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Rows	Contact Finish - Post (Mating)	Length - Stack Height [z]	Length - Stack Height [z]	Length - Tail [x]	Length - Tail [x]	Color	Mounting Type	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Stack Height [x]	Length - Stack Height [x]	Length - Tail	Length - Tail	Length - Tail	Length - Tail [custom]	Length - Tail [custom]
Samtec Inc. ZW-18-13-L-D-850-130	Solder	36	0.1 in	2.54 mm	2.54 mm	0.1 in	31.242 mm	1.23 in	0.25 in	6.35 mm	2	Gold	21.59 mm	0.85 in	3.302 mm	0.13 in	Black	Through Hole	0.25 Ám	10 Áin
Samtec Inc. ZW-18-13-G-D-655-288	Solder	36	0.1 in	2.54 mm	2.54 mm	0.1 in	31.242 mm	1.23 in	0.287 in	7.29 mm	2	Gold					Black	Through Hole	0.25 Ám	10 Áin	16.637 mm	0.655 in	7.315 mm	0.288 in
Samtec Inc. ZW-18-13-S-S-270-480	Solder	18			2.54 mm	0.1 in	31.242 mm	1.23 in	0.48 in	12.192 mm	1	Gold					Black	Through Hole	0.76 µm	30 µin	6.858 mm	0.27 in		12.192 mm	0.48 in
Samtec Inc. ZW-18-13-G-S-925-200	Solder	18			2.54 mm	0.1 in	31.242 mm	1.23 in	0.105 in	2.667 mm	1	Gold					Black	Through Hole	0.25 Ám	10 Áin	23.495 mm	0.925 in		5.08 mm	0.2 in
Samtec Inc. ZW-18-13-G-D-610-310	Solder	36	0.1 in	2.54 mm	2.54 mm	0.1 in	31.242 mm	1.23 in	0.31 in	7.874 mm	2	Gold	15.494 mm	0.61 in	7.874 mm	0.31 in	Black	Through Hole	0.25 Ám	10 Áin
Samtec Inc. ZW-18-13-T-S-574-400	Solder	18			2.54 mm	0.1 in	31.242 mm	1.23 in	0.256 in	6.502 mm	1	Tin					Black	Through Hole			14.58 mm	0.574 in		10.16 mm	0.4 in
Samtec Inc. ZW-18-13-T-D-826-236	Solder	36	0.1 in	2.54 mm	2.54 mm	0.1 in	31.242 mm	1.23 in	0.168 in	4.267 mm	2	Tin	20.98 mm	0.826 in			Black	Through Hole								0.236 in	5.994 mm
Samtec Inc. ZW-18-13-G-D-800-330	Solder	36	0.1 in	2.54 mm	2.54 mm	0.1 in	31.242 mm	1.23 in	0.1 in	2.54 mm	2	Gold					Black	Through Hole	0.25 Ám	10 Áin	20.32 mm	0.8 in		8.382 mm	0.33 in
Samtec Inc. ZW-18-13-T-S-575-400	Solder	18			2.54 mm	0.1 in	31.242 mm	1.23 in	0.255 in	6.477 mm	1	Tin					Black	Through Hole			14.605 mm	0.575 in		10.16 mm	0.4 in
Samtec Inc. ZW-18-13-T-S-815-275	Solder	18			2.54 mm	0.1 in	31.242 mm	1.23 in	0.14 in	3.556 mm	1	Tin					Black	Through Hole			20.7 mm	0.815 in		6.985 mm	0.275 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.47
