SF1138-6015

Active

Amphenol SV Microwave

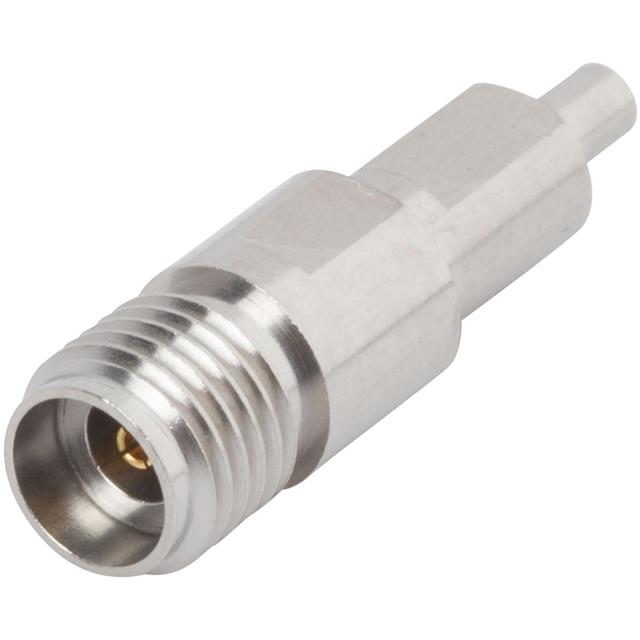

RF / COAXIAL ADAPTER, SMPS, PLUG, 2.92MM COAXIAL, JACK, STRAIGHT ADAPTOR, 50 OHM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

RF / COAXIAL ADAPTER, SMPS, PLUG, 2.92MM COAXIAL, JACK, STRAIGHT ADAPTOR, 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	SF1138-6015

Adapter Series	SMPS to 2.92mm
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SMPS Plug, Male Pin
Convert To (Adapter End)	2.92 mm
Convert To (Adapter End)	OS-2.9 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Features	Full Detent
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Conversion Type	Mounting Type	Body Material	Convert To (Adapter End)	Impedance	Center Gender	Adapter Type	Fastening Type	Adapter Series	Style	Center Contact Material	Center Contact Plating	Dielectric Material	Convert From (Adapter End)	Frequency - Max [Max]	Convert To (Adapter End)	Features	Mating Cycles
Amphenol SV Microwave SF1138-6020	Same Series	Free Hanging (In-Line)	Stainless Steel	Male Pin SMPS Plug	50 Ohms	Male to Male	Plug to Plug	Snap-On	SMPS to SMPS	Straight	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	SMPS Plug Male Pin
Amphenol SV Microwave SF1138-6015	Between Series	Free Hanging (In-Line)	Stainless Steel	OS-2.9 Jack Female Socket	50 Ohms		Plug to Jack	Snap-On Threaded	SMPS to 2.92mm	Straight	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	SMPS Plug Male Pin	40 GHz	2.92 mm	Full Detent
Amphenol SV Microwave SF1138-6024	Between Series	Free Hanging (In-Line)	Stainless Steel	OS-2.9 Jack Female Socket	50 Ohms		Plug to Jack	Snap-On Threaded	SMPS to 2.92mm	Straight	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	SMPS Plug Male Pin	40 GHz	2.92 mm	Smooth Bore	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMPS Plug, Male Pin To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
