EB_FR01-S4-224-2,4-5

Obsolete

Ignion

EB_RUN MXTEND 1P 2,4-5 GHZ

Search across all available documentation for this part.

Obsolete

Ignion

EB_RUN MXTEND 1P 2,4-5 GHZ

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EB_FR01-S4-224-2,4-5	EB_FR01 Series

For Use With/Related Products	FR01-S4-224	FR01-S4-224, FR01-S4-250
Frequency	-	1.561 - 915 GHz
Frequency [Max]	2.5 GHz, 5.875 GHz	1.606 - 960 GHz
Frequency [Min]	4.9 GHz, 2.4 GHz	1.598 - 824 GHz
Supplied Contents	Board(s)	Board(s)
Type	Antenna	Antenna

EB_RUN MXTEND 1P 2,4-5 GHZ

Part	Frequency [Min]	Frequency [Max]	Supplied Contents	For Use With/Related Products	Type	Frequency
Ignion EB_FR01-S4-224-2,4-5	2.4 GHz, 4.9 GHz	2.5 GHz, 5.875 GHz	Board(s)	FR01-S4-224	Antenna
Ignion EB_FR01-S4-250-UFL1R-850	824 MHz	960 MHz	Board(s)	FR01-S4-250	Antenna
Ignion EB_NN02-224-CR80-2400	2.4 GHz	2.5 GHz	Board(s)	FR01-S4-224	Antenna
Ignion EB_FR01-S4-224-CR80-1561-1606	1.598 GHz	1.606 GHz	Board(s)	FR01-S4-224	Antenna	1.561 GHz, 1.575 GHz
Ignion EB_FR01-S4-250-CPW1R-1700	1.71 GHz	2.69 GHz	Board(s)	FR01-S4-250	Antenna
Ignion EB_FR01-S4-250-CPW2R	1.71 GHz, 824 MHz	2.69 GHz, 960 MHz	Board(s)	FR01-S4-250	Antenna
Ignion EB_FR01-S4-224-UFL3R-2P	1.71 GHz, 3.4 GHz, 698 MHz	2.69 GHz, 3.8 GHz, 960 MHz	Board(s)	FR01-S4-224	Antenna
Ignion EB_FR01-S4-250-UFL1R-1700	1.71 GHz	2.69 GHz	Board(s)	FR01-S4-250	Antenna
Ignion EB_FR01-S4-250-CPW1R-700	698 MHz	798 MHz	Board(s)	FR01-S4-250	Antenna
Ignion EB_FR01-S4-224-2400	2.4 GHz	2.5 GHz	Board(s)	FR01-S4-224	Antenna

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

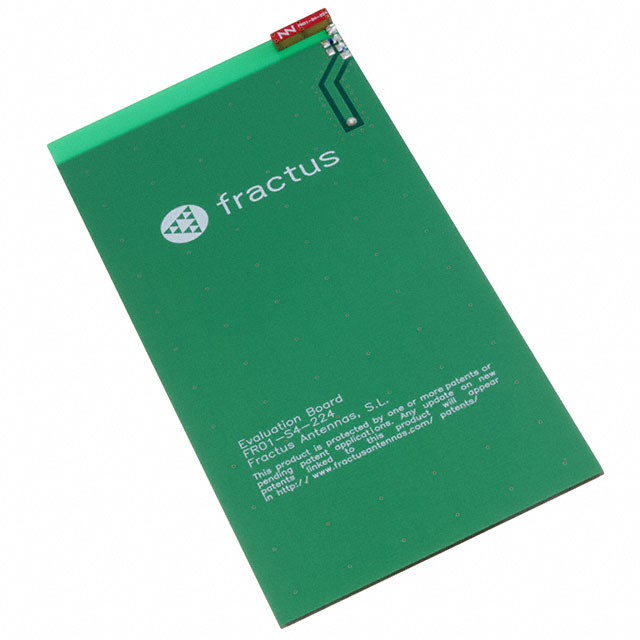

FR01-S4-224 RUN mXTEND™ Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz Evaluation Board

Technical documentation and resources

No documents available
