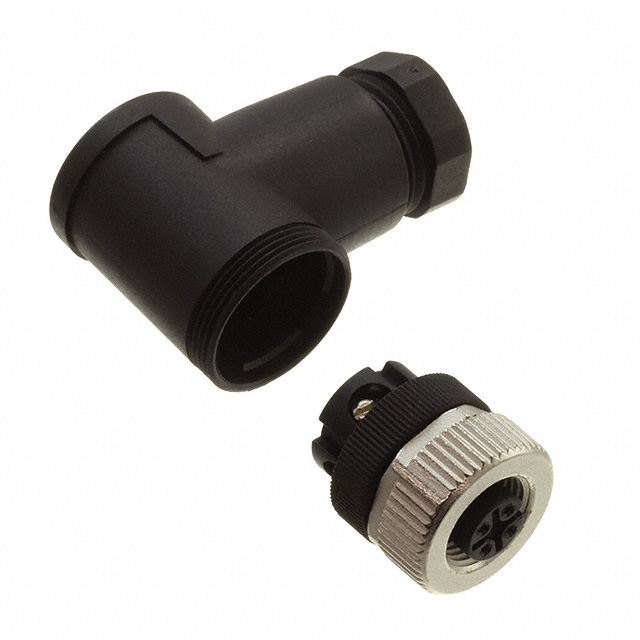

V1-W-PG9

Active

PEPPERL+FUCHS

CONN PLUG FMALE 4P COPPER SCREW

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

CONN PLUG FMALE 4P COPPER SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	V1-W-PG9

Applications	Industrial Automation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [custom]	8 mm
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Min] [custom]	6 mm
Cable Opening [Min] [custom]	0.236 in
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Copper Tin Zinc
Contact Material	Copper Zinc
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M12-4
Shielding	Unshielded
Termination	Screw
Voltage Rating	250 VAC

CONN PLUG FMALE 4P COPPER SCREW

Part	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Current Rating (Amps)	Shell Finish	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Voltage Rating	Primary Material	Applications	Termination	Color	Shielding	Connector Type	Mounting Type	Ingress Protection	Contact Finish - Mating	Contact Material	Orientation	Shell Material	Shell Size - Insert	Features
PEPPERL+FUCHS V1-W-PG9	Nylon, Polyamide (PA)	-25 °C	85 °C	4	4 A	Nickel	8 mm	6 mm	0.315 in	0.236 in	250 VAC	Metal	Industrial Automation	Screw	Black, Silver	Unshielded	Female Sockets, Plug	Free Hanging (In-Line), Right Angle	IP67 - Dust Tight, Waterproof	Copper Tin Zinc	Copper Zinc	Keyed	Copper Zinc	M12-4	Backshell, Coupling Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Screw
