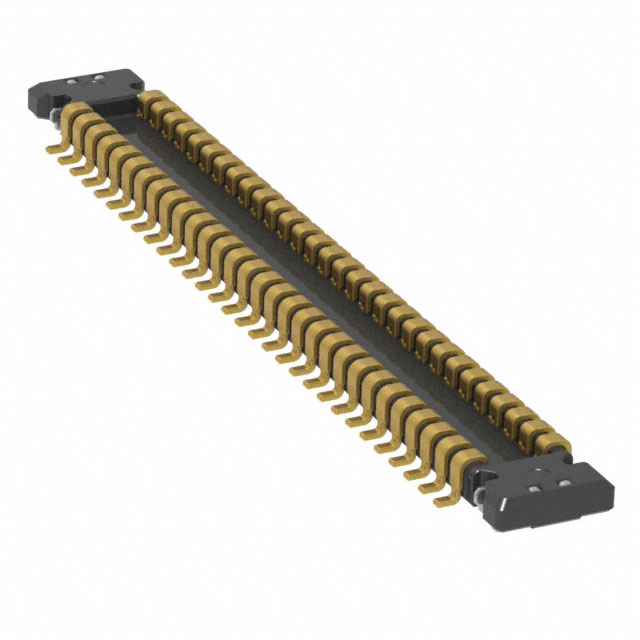

AXG8600J4A
ObsoletePanasonic Electric Works
CONN PLUG 60POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AXG8600J4A
ObsoletePanasonic Electric Works
CONN PLUG 60POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AXG8600J4A |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board | 0.46 mm |
| Height Above Board | 0.018 in |
| Mated Stacking Heights | 0.6 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 62 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 7.56 | |
| 10 | $ 6.84 | |||
| 25 | $ 6.46 | |||
| 50 | $ 6.30 | |||
| 100 | $ 5.99 | |||
| 250 | $ 5.36 | |||
| 500 | $ 5.04 | |||
Description
General part information
AXG860 Series
62 (60 + 2 Power) Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
