MS3108E28-20P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108E28-20P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3108E28-20P | MS3108E28 Series |
|---|---|---|
| - | - | |
| Applications | Military, Marine | Military, Marine |
| Cable Opening [custom] | 23.42 mm | 23.42 mm |
| Cable Opening [custom] | 0.922 in | 0.922 in |
| Color | Olive Drab | Olive Drab |
| Connector Type | Plug, Male Pins | Female Sockets, Plug, Male Pins |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 13 A, 23 A | 13 - 23 A |
| Features | Coupling Nut, Cable Clamp | Coupling Nut, Cable Clamp |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 14 | 14 - 26 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-5015 | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | - | 28-12 |
| Shell Size - Insert [Max] | 20 | 20 |
| Shell Size - Insert [Min] | 28 | 28 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 76.61 | |
| 10 | $ 70.30 | |||
| 25 | $ 67.60 | |||
| 50 | $ 65.35 | |||
| 100 | $ 61.74 | |||
MS3108E28 Series
ER 10C 6#16 4#12 PIN PLUG RTAN
| Part | Shell Finish | Grade | Shell Size - Insert | Shell Material | Primary Material | Ingress Protection | Number of Positions | Insert Material | Orientation | Qualification | Contact Material | Mounting Type | Color | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Cable Opening [custom] | Cable Opening [custom] | Shielding | Contact Finish - Mating | Connector Type | Features | Applications | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3108E28-19PY | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E28-12S | Olive Drab Chromate over Cadmium | Military | 28-12 | Aluminum Alloy | Metal | Environment Resistant | 26 | Neoprene | N | MIL-DTL-5015 | Copper Alloy | Free Hanging (In-Line), Right Angle | Olive Drab | 13 A | -55 °C | 125 °C | 23.42 mm | 0.922 in | Unshielded | Silver | Female Sockets, Plug | Cable Clamp, Coupling Nut | Marine, Military | ||
Amphenol Industrial Operations MS3108E28-12P | Olive Drab Chromate over Cadmium | Military | 28-12 | Aluminum Alloy | Metal | Environment Resistant | 26 | Neoprene | N | MIL-DTL-5015 | Copper Alloy | Free Hanging (In-Line), Right Angle | Olive Drab | 13 A | -55 °C | 125 °C | 23.42 mm | 0.922 in | Unshielded | Silver | Male Pins, Plug | Cable Clamp, Coupling Nut | Marine, Military | ||
Amphenol Industrial Operations MS3108E28-10P | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E28-20S | Olive Drab Chromate over Cadmium | Military | Aluminum Alloy | Metal | Environment Resistant | 14 | Neoprene | N | MIL-DTL-5015 | Copper Alloy | Free Hanging (In-Line), Right Angle | Olive Drab | 13 A, 23 A | -55 °C | 125 °C | 23.42 mm | 0.922 in | Unshielded | Silver | Female Sockets, Plug | Cable Clamp, Coupling Nut | Marine, Military | 28 | 20 | |
Amphenol Industrial Operations MS3108E28-20P | Olive Drab Chromate over Cadmium | Military | Aluminum Alloy | Metal | Environment Resistant | 14 | Neoprene | N | MIL-DTL-5015 | Copper Alloy | Free Hanging (In-Line), Right Angle | Olive Drab | 13 A, 23 A | -55 °C | 125 °C | 23.42 mm | 0.922 in | Unshielded | Silver | Male Pins, Plug | Cable Clamp, Coupling Nut | Marine, Military | 28 | 20 | |
Amphenol Industrial Operations MS3108E28-18SX | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E28-16S |
Description
General part information
MS3108E28 Series

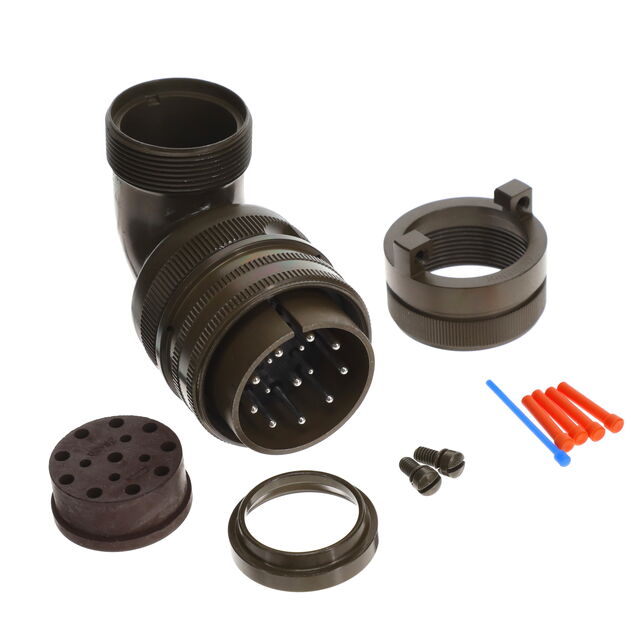

14 Position Circular Connector Plug, Male Pins Solder Cup
