D38999/20JA35PN

Active

ITT Cannon, LLC

CONN RCPT MALE 6POS GOLD CRIMP

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT MALE 6POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20JA35PN

Applications	Aviation, Marine, Military
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Composite
Shell Finish	Olive Drab Cadmium
Shell Material	Composite
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	9
Termination	Crimp

Part	Mounting Feature	Color	Contact Material	Primary Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Termination	Number of Positions	Applications	Ingress Protection	Shell Finish	Shell Material	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish - Mating
ITT Cannon, LLC D38999/20JA35PN	Flange	Olive Drab	Copper Alloy	Composite	9	35	Crimp	6	Aviation Marine Military	Environment Resistant	Olive Drab Cadmium	Composite	N	1.27 µm	50 µin	-65 ░C	347 °F	Male Pins Receptacle	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

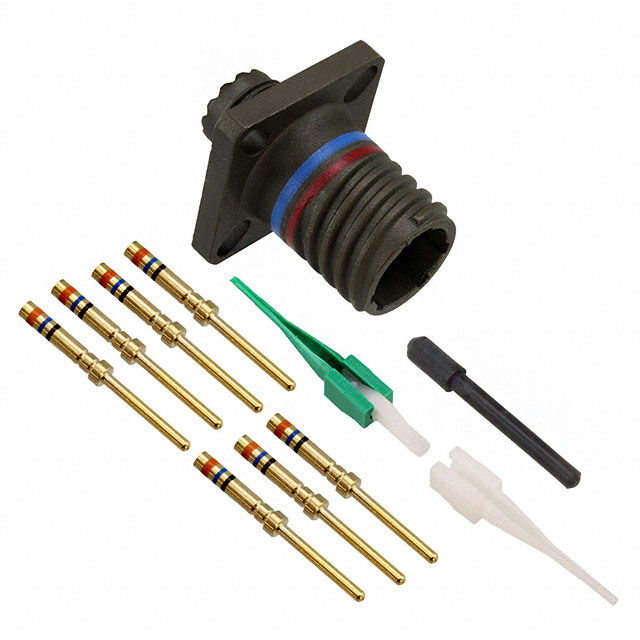

6 Position Circular Connector Receptacle, Male Pins Crimp
