Specification	FA1-NZSP-PCB-1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	Fakra, SMB
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code Z
Frequency - Max	4 GHz
Housing Color	Water, Blue
Impedance	50 Ohm
Insertion Loss	0.3 dB
Mating Cycles	100 cycles
Mounting Type	Cutout, Surface Mount, Board Edge
Number of Ports	1
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Solder

FAKRA Series

Part	Shield Termination	Cable Group	Connector Type	Fastening Type	Center Contact Material	Mounting Type	Number of Ports	Connector Style	Contact Termination	Frequency - Max	Housing Color	Features - Code	Features	Impedance	Color	Body Material	Accessory Type	Body Finish	Center Contact Plating	Dielectric Material	Mating Cycles	Insertion Loss	Operating Temperature (Max)	Operating Temperature (Min)	Includes	Includes Total Count	1st Connector Mounting Type	2nd Connector Mounting Type	Length	1st Contact Gender	Cable Impedance	Ingress Protection Description	Ingress Protection IP Rating	Overall Impedance	2nd Contact Gender	Connector Impedance	1st Connector	Style	2nd Connector	Cable Type	2nd Connector Mounting Feature	Cable Type Size	Cable Outer Diameter
McGill Microwave Systems FA1-NASJ-C04-0	Crimp	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Female Socket Jack	Latch Lock	Beryllium Copper	Free Hanging (In-Line)	1	Fakra SMB	Crimp	6000 MHz	Black Jet	A	Code A	50 Ohm
McGill Microwave Systems 3FAH-NDSJ-C04W6								Fakra SMB							Claret Violet	Zinc	Housing	Tin
McGill Microwave Systems FA1-NZSP-PCB-1	Solder		Male Pin Plug	Locking Ramp	Brass	Board Edge Cutout Surface Mount	1	Fakra SMB	Solder	4 GHz	Blue Water		Code Z	50 Ohm		Brass		Gold	Gold	Polytetrafluoroethylene (PTFE)	100 cycles	0.3 dB	100 °C	-40 °C

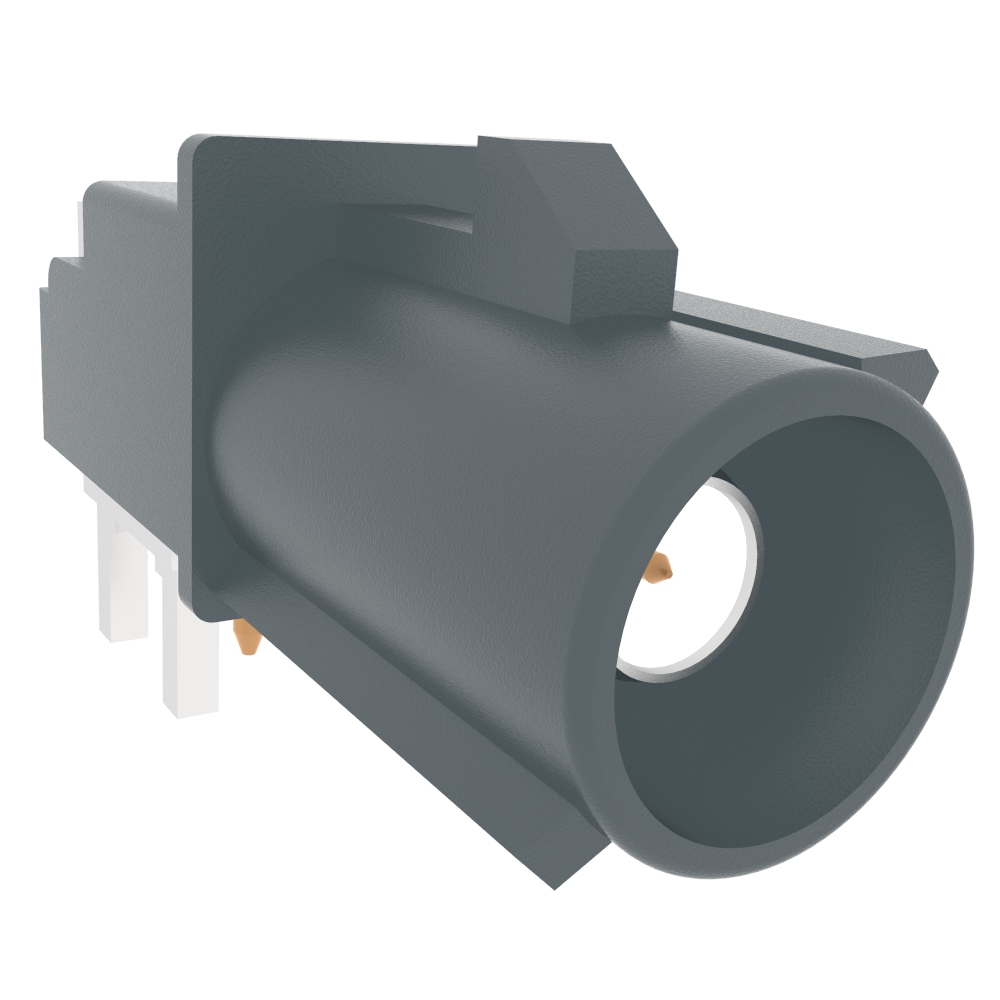

McGill Microwave Systems FA1-NGRP-PCB-8	Solder		Male Pin Plug	Locking Ramp	Brass	Right Angle Through Hole	1	Fakra SMB	Solder	6000 MHz	Blue Gray		Code G	50 Ohm		Zinc Die Cast		Tin	Gold	Polytetrafluoroethylene (PTFE)	100 cycles	0.3 dB	125 °C	-65 °C	Connector Housing	2 pcs
McGill Microwave Systems 095-820-246-006										6000 MHz					Black								105 °C	-40 °C			Free Hanging (In-Line)	Free Hanging (In-Line)	0.5 ft	Male	50 Ohms	Dust Tight Waterproof	IP67	50 Ohms	Male	50 Ohms	Fakra Plug	Fakra	Fakra Plug	TFC-302LL
McGill Microwave Systems FA1-NMSJ-C01-0	Crimp	188 316 RG-174	Female Socket Jack	Latch Lock	Beryllium Copper	Free Hanging (In-Line)	1	Fakra SMB	Crimp	4 GHz	Orange Pastel		Code M	50 Ohm
McGill Microwave Systems FA2-NASJ-C01-6	Crimp	188 188A 316 LMR-100 M17/119-RG174 RG-174	Female Socket Jack	Latch Lock	Beryllium Copper	Free Hanging (In-Line)	2	Fakra SMB	Crimp	4 GHz	Black Jet	A	Code A	50 Ohm		Brass		Nickel	Gold	Polytetrafluoroethylene (PTFE)	100 cycles	0.3 dB	100 °C	-40 °C	Connectors Contacts Ferrules Housing Locking Clips	9 pcs
McGill Microwave Systems FA1-NARP-PCB-8	Solder		Male Pin Plug	Locking Ramp	Brass	Right Angle Through Hole	1	Fakra SMB	Solder	6000 MHz	Black Jet	A	Code A	50 Ohm
McGill Microwave Systems FA1-NDSP-PCB-1	Solder		Male Pin Plug	Locking Ramp	Brass	Board Edge Cutout Surface Mount	1	Fakra SMB	Solder	4 GHz	Claret Violet		Code D	50 Ohm		Brass		Gold	Gold	Polytetrafluoroethylene (PTFE)	100 cycles	0.3 dB	100 °C	-40 °C
McGill Microwave Systems 095-820-109-05A										6000 MHz			Locking		Black								90 °C	-40 °C			Free Hanging (In-Line)	Panel Mount	1.969 in	Female				50 Ohms	Male		AMC Plug Right Angle U.FL (UMCC)	AMC to Fakra SMB U.FL (UMCC)	Fakra SMB Plug	Coaxial Cable OD Coaxial Cable	Bulkhead - Front Side Nut	1.37	1.37 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

FAKRA SMB Connector Catalog
