Description
General part information

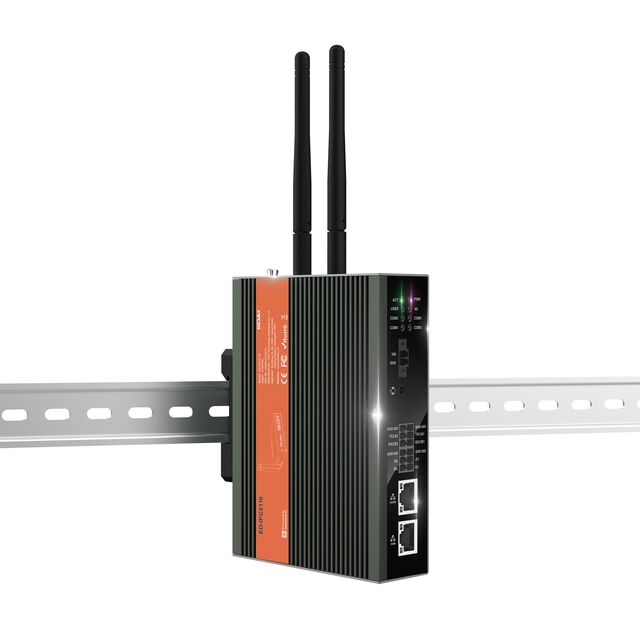

ED-IPC2110 Series
Single Board Computer 1.5GHz 4 Core RAM Raspberry Pi CM4 # CM4108032: ARM Cortex-A72
Technical Specifications
Parameters and characteristics for this part
| Specification | ED-IPC2110-18324US |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | Raspberry Pi CM4 # CM4108032: ARM Cortex-A72 |
| Ethernet Speed Options | 100Mbps, 1000Mbps, 10Mbps |
| Form Factor | Desktop |
| Number of Cores | 4 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 24 W |
| Serial Interface Count | 4 |
| Size / Dimension Height | 1.378 in |
| Size / Dimension Length | 5.63 in |
| Size / Dimension Width | 3.937 in |
| Speed | 1.5 GHz |
| Storage Interface | eMMC |
| Supported Serial Standards | RS-485, RS-232, RS-422 |
| USB | Micro USB (1), USB 2.0 (2) |
| Video Outputs | HDMI |
| Watchdog Timer | Yes |
