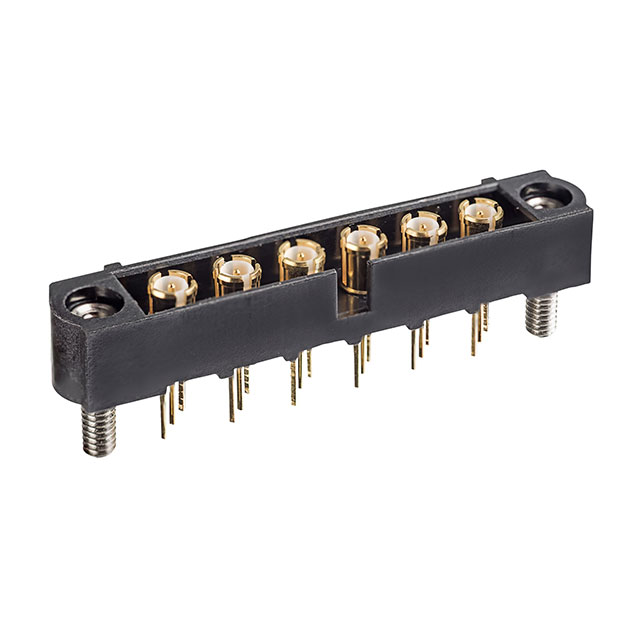

M80-MV312M3-06
ActiveHarwin Inc.
6 POS. MALE SIL COAX VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M80-MV312M3-06
ActiveHarwin Inc.
6 POS. MALE SIL COAX VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-MV312M3-06 |
|---|---|
| Connector Type | Header |
| Contact Length - Post | 0.177 in |
| Contact Length - Post | 4.5 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin, Coaxial |
| Features | Mating Flange, Mounting Flange |
| Insulation Color | Black |
| Insulation Height | 5.6 mm |
| Insulation Height | 0.22 in |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated Stacking Heights | 7.3 mm, 9.75 mm, 9.7 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.157 " |
| Pitch - Mating | 4 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-MV3 Series
Connector Header Through Hole 6 (Coax) position 0.157" (4.00mm)
