E3034S.41.86
ActivePrysmian Group

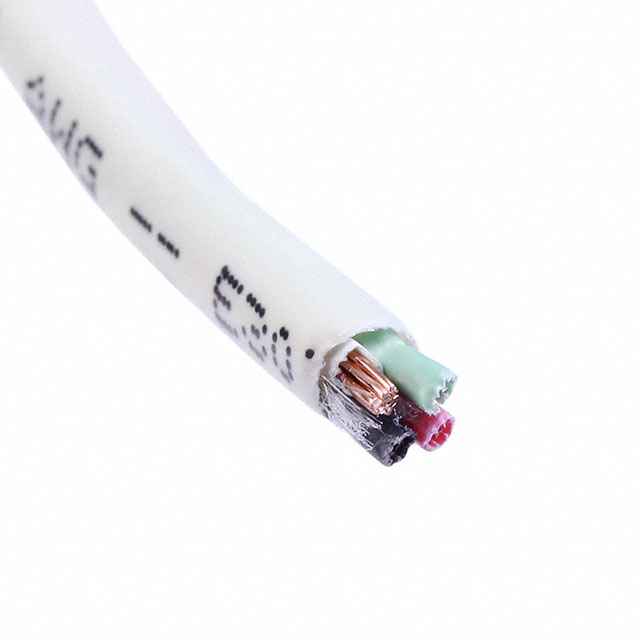

CABLE 4COND 18AWG NATURAL
Deep-Dive with AI
Search across all available documentation for this part.
E3034S.41.86
ActivePrysmian Group
CABLE 4COND 18AWG NATURAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | E3034S.41.86 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Bare |
| Conductor Strand [custom] | 26 AWG |
| Conductor Strand [custom] | 7 |
| Jacket (Insulation) Diameter [diameter] | 0.187 in |
| Jacket (Insulation) Diameter [diameter] | 4.75 mm |
| Jacket (Insulation) Material | Plenum, Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Natural |
| Length | 1000 ft |
| Length | 304.8 m |
| Length [x] | 30.5 m, 152.4 m |
| Length [x] | 100 ft, 500 ' |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Ratings | ASTM B-3 |
| Usage | Sound, Security, Alarm |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
E3034S Series
| Part | Wire Gauge | Jacket (Insulation) Material | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Usage | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Conductor Insulation | Number of Conductors | Conductor Material | Ratings | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Prysmian Group | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Multi-Conductor | 0.015 in | 0.381 mm | Natural | 75 ░C | 0 °C | Alarm Security Sound | 1000 ft | 304.8 m | 0.187 in | 4.75 mm | 26 AWG | 7 | 300 V | Poly-Vinyl Chloride (PVC) | 4 | Copper Annealed Bare | ASTM B-3 | ||||
Prysmian Group | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Multi-Conductor | 0.015 in | 0.381 mm | Natural | 75 ░C | 0 °C | Alarm Security Sound | 1000 ft | 304.8 m | 0.187 in | 4.75 mm | 26 AWG | 7 | 300 V | Poly-Vinyl Chloride (PVC) | 4 | Copper Annealed Bare | ASTM B-3 | ||||
Prysmian Group | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Multi-Conductor | 0.015 in | 0.381 mm | Natural | 75 ░C | 0 °C | Alarm Security Sound | 0.187 in | 4.75 mm | 26 AWG | 7 | 300 V | Poly-Vinyl Chloride (PVC) | 4 | Copper Annealed Bare | ASTM B-3 | 500 ' | 152.4 m | ||||
Prysmian Group | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Multi-Conductor | 0.015 in | 0.381 mm | Natural | 75 ░C | 0 °C | Alarm Security Sound | 1000 ft | 304.8 m | 0.187 in | 4.75 mm | 26 AWG | 7 | 300 V | Poly-Vinyl Chloride (PVC) | 4 | Copper Annealed Bare | ASTM B-3 | 100 ft 500 ' | 30.5 m 152.4 m | ||
Prysmian Group | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Multi-Conductor | 0.015 in | 0.381 mm | Yellow | 75 ░C | 0 °C | Alarm Security Sound | 1000 ft | 304.8 m | 0.187 in | 4.75 mm | 300 V | Poly-Vinyl Chloride (PVC) | 4 | Copper Annealed Bare | ASTM B-3 | 28 | 7 | ||||
Prysmian Group | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Multi-Conductor | 0.015 in | 0.381 mm | 75 ░C | 0 °C | Alarm Security Sound | 1000 ft | 15.24 m 304.8 m | 0.187 in | 4.75 mm | 26 AWG | 7 | 300 V | Poly-Vinyl Chloride (PVC) | 4 | Copper Annealed Bare | ASTM B-3 | 25 ft 50 ft 100 ft | 7.62 m 30.5 m | |||
Prysmian Group | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Multi-Conductor | 0.015 in | 0.381 mm | 75 ░C | 0 °C | Alarm Security Sound | 1000 ft | 304.8 m | 0.187 in | 4.75 mm | 26 AWG | 7 | 300 V | Poly-Vinyl Chloride (PVC) | 4 | Copper Bare | ASTM B-3 | |||||
Prysmian Group | 18 AWG | Plenum Poly-Vinyl Chloride (PVC) | Multi-Conductor | 0.015 in | 0.381 mm | Gray | 75 ░C | 0 °C | Alarm Security Sound | 1000 ft | 304.8 m | 0.187 in | 4.75 mm | 26 AWG | 7 | 300 V | Poly-Vinyl Chloride (PVC) | 4 | Copper Bare | ASTM B-3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 326.77 | |
| 1 | $ 70.50 | |||
| 5 | $ 267.35 | |||
| 5 | $ 57.68 | |||
| 10 | $ 44.86 | |||
| 10 | $ 207.94 | |||
| 1000 | $ 0.32 | |||
| 2000 | $ 0.31 | |||
| 3000 | $ 0.30 | |||
| 5000 | $ 0.29 | |||
| 7000 | $ 0.28 | |||
| 10000 | $ 0.27 | |||
| 25000 | $ 0.25 | |||
Description
General part information
E3034S Series
4 Conductor Multi-Conductor Cable Natural 18 AWG 1000.0' (304.8m)
Documents
Technical documentation and resources
No documents available
