25271 BK005

Active

ALPHA WIRE

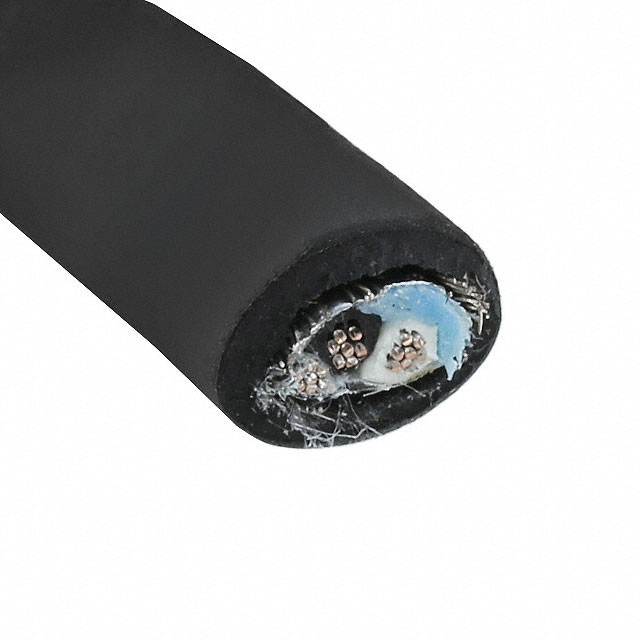

CABLE 2COND 24AWG BLK SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 24AWG BLK SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	25271 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	4.67 mm
Jacket (Insulation) Diameter [diameter]	0.184 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Shield Coverage	70 %, 100 %
Shield Material	Copper, Tinned, Suprashield®
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	24 AWG

CABLE 2COND 24AWG BLK SHLD 100'

Part	Voltage	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Jacket (Insulation) Material	Shield Material	Shield Type	Jacket Color	Cable Type	Wire Gauge	Ratings	Number of Conductors	Conductor Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]
ALPHA WIRE 25271 BK005	300 V	30.5 m	100 ft	-30 ░C	90 °C	70 %, 100 %	Polyurethane (PU)	Copper, Tinned, Suprashield®	Braid, Foil	Black	Multi-Conductor	24 AWG	ISO 10993, UL Style 20668	2	Copper, Tinned	Biological Compatibility, Drain Wire, Rip Cord	4.67 mm	0.184 in	Poly-Vinyl Chloride (PVC)	32 AWG	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Black 24 AWG Foil, Braid 100.0' (30.5m)
