Q-2P03400050.5M

Active

Amphenol Custom Cable

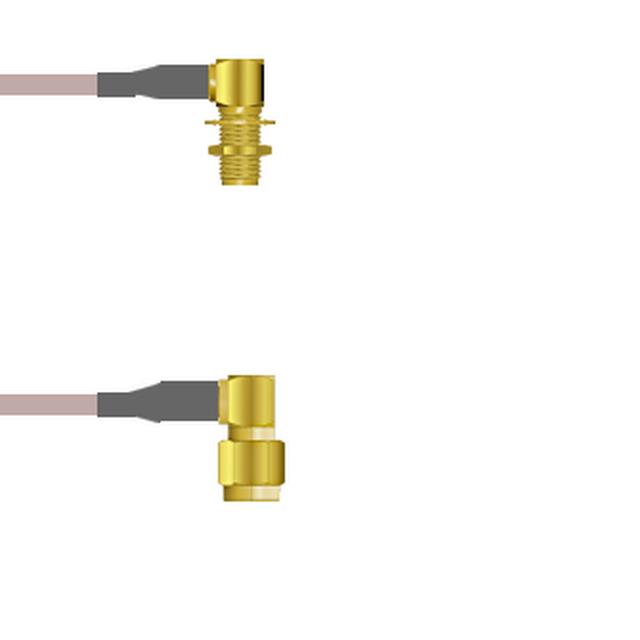

COAX CBL SMA TO SMA 19.6"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO SMA 19.6"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2P03400050.5M

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	SMA to SMA

Part	1st Connector Mounting Feature	Style	Overall Impedance	Color	Connector Impedance	1st Connector Mounting Type	Length	Length	2nd Contact Gender	Cable Type	1st Connector	2nd Connector	Features	1st Contact Gender	2nd Connector Mounting Type	Frequency - Max [Max]	Cable Impedance	Length
Amphenol Custom Cable Q-2P03400050.5M	Bulkhead - Front Side Nut	SMA to SMA	50 Ohms	Copper	50 Ohms	Panel Mount	50 cm	19.69 "	Male	RG-316	Right Angle SMA Jack	SMA Plug Right Angle	Shielded	Female	Free Hanging (In-Line)	3 GHz	50 Ohms
Amphenol Custom Cable Q-2P0340003072I	Bulkhead - Front Side Nut	SMA to SMA	50 Ohms	Black	50 Ohms	Panel Mount	1.8 m	72 in	Male	RG-174	Right Angle SMA Jack	SMA Plug Right Angle	Shielded	Female	Free Hanging (In-Line)	1 GHz	50 Ohms	6 ft
Amphenol Custom Cable Q-2P0340003084I	Bulkhead - Front Side Nut	SMA to SMA	50 Ohms	Black	50 Ohms	Panel Mount	2.1 m	84 in	Male	RG-174	Right Angle SMA Jack	SMA Plug Right Angle	Shielded	Female	Free Hanging (In-Line)	1 GHz	50 Ohms	7 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA RG-316 19.69" (500.00mm)

Technical documentation and resources

No documents available
