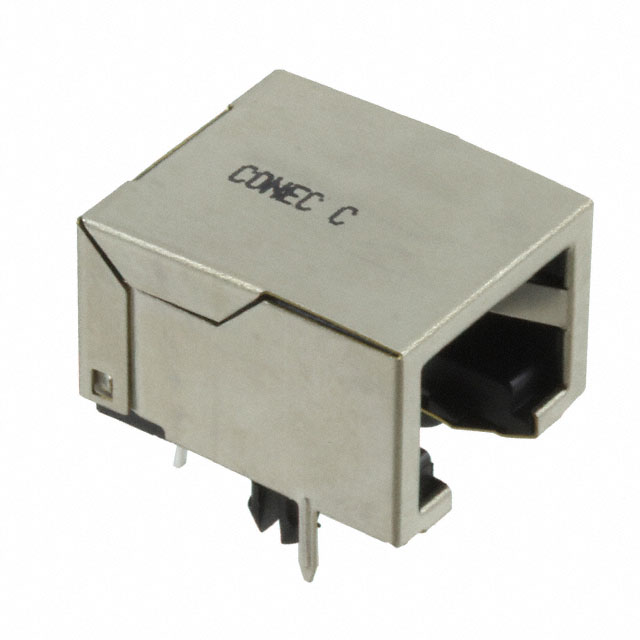

33TS3004S-88B

Active

Amphenol CONEC

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	33TS3004S-88B

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.152 Ám
Contact Finish Thickness	6 Áin
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Orientation	90 °
Shielding	Shielded
Tab Direction	Down
Termination	Solder

Part	Number of Rows	Connector Type	Termination	Features	Shielding	Contact Finish	Number of Ports	Number of Positions/Contacts	Mounting Type	Tab Direction	Orientation	LED Color	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
Amphenol CONEC 33TS3004ST-88002	1	Jack	Solder	Board Guide Solder Retention	Shielded	Gold	1	8p8c (RJ45 Ethernet)	Surface Mount	Down	90 °	Does Not Contain LED
Amphenol CONEC 33TS3004S-88B	1	Jack	Solder		Shielded	Gold	1	8p8c (RJ45 Ethernet)	Through Hole	Down	90 °	Does Not Contain LED	Polybutylene Terephthalate (PBT) Glass Filled	0.152 Ám	6 Áin
Amphenol CONEC 33TS3004S-101001					Shielded											10	10
Amphenol CONEC 33TS3004ST-88001	1	Jack	Solder	Board Guide Solder Retention	Shielded	Gold	1	8p8c (RJ45 Ethernet)	Surface Mount	Down	90 °	Does Not Contain LED
Amphenol CONEC 33TS3004S-880003					Shielded			8p8c (RJ45 Ethernet)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded
