HW-04-20-T-D-716-207

Active

Samtec Inc.

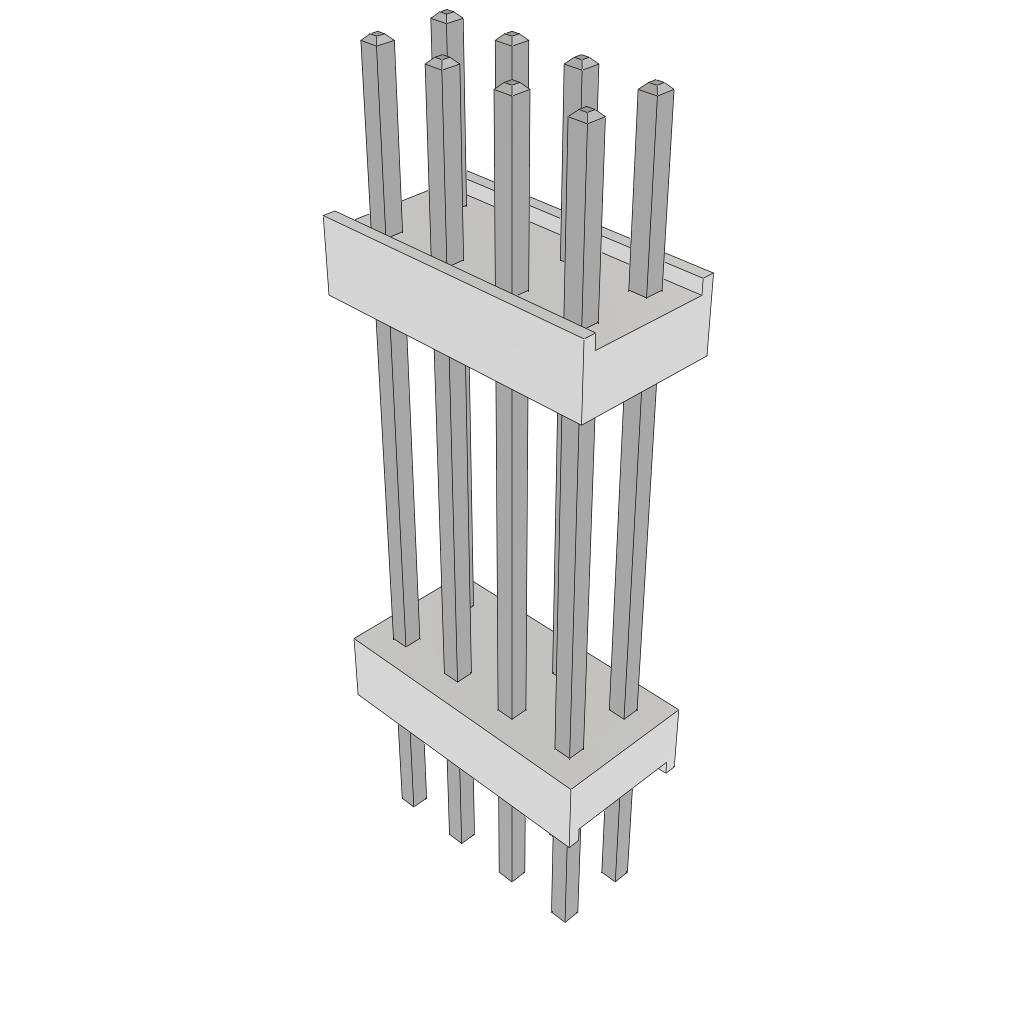

CONN HDR 8POS 0.1 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch Datasheet

HW-04-20-T-D-716-207

Active

Samtec Inc.

CONN HDR 8POS 0.1 STACK T/H

Deep-Dive with AI

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-04-20-T-D-716-207

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin [x]	1.13 in
Length - Overall Pin [x]	28.702 mm
Length - Post (Mating) [x]	0.207 in
Length - Post (Mating) [x]	5.258 mm
Length - Stack Height [x]	18.186 mm
Length - Stack Height [x]	0.716 in
Length - Tail	5.258 mm
Length - Tail [x]	0.207 "
Mounting Type	Through Hole
Number of Positions	8
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

HW-04-20 Series

Part	Contact Finish - Post (Mating)	Pitch [x]	Pitch [x]	Number of Positions	Color	Length - Overall Pin [x]	Length - Overall Pin [x]	Termination	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Row Spacing [x]	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]	Mounting Type	Number of Rows	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [x]	Length - Stack Height [x]	Length - Tail	Length - Tail [x]
Samtec Inc. HW-04-20-G-D-768-SM	Gold	2.54 mm	0.1 in	8	Black	27.051 mm	1.065 in	Solder	0.25 Ám	10 Áin	0.1 in	2.54 mm	0.768 in	19.507 mm	Surface Mount	2	0.297 in	7.544 mm
Samtec Inc. HW-04-20-T-D-716-207	Tin	2.54 mm	0.1 in	8	Black	28.702 mm	1.13 in	Solder			0.1 in	2.54 mm			Through Hole	2	0.207 in	5.258 mm	18.186 mm	0.716 in	5.258 mm	0.207 "
Samtec Inc. HW-04-20-G-D-800-SM-A	Gold	2.54 mm	0.1 in	8	Black	27.051 mm	1.065 in	Solder	0.25 Ám	10 Áin	0.1 in	2.54 mm			Surface Mount	2	0.265 in	6.731 mm	20.32 mm	0.8 in
Samtec Inc. HW-04-20-F-D-825-SM	Gold	2.54 mm	0.1 in	8	Black	27.051 mm	1.065 in	Solder	0.076 Ám	3 Áin	0.1 in	2.54 mm			Surface Mount	2	0.24 in	6.096 mm	20.955 mm	0.825 in
Samtec Inc. HW-04-20-F-D-767-SM-A	Gold	2.54 mm	0.1 in	8	Black	27.051 mm	1.065 in	Solder	0.076 Ám	3 Áin	0.1 in	2.54 mm	0.767 in	19.482 mm	Surface Mount	2	0.298 in	7.569 mm
Samtec Inc. HW-04-20-G-D-872-SM-A	Gold	2.54 mm	0.1 in	8	Black	27.051 mm	1.065 in	Solder	0.25 Ám	10 Áin	0.1 in	2.54 mm			Surface Mount	2	0.193 in	4.902 mm	22.149 mm	0.872 in
Samtec Inc. HW-04-20-G-D-891-SM	Gold	2.54 mm	0.1 in	8	Black	27.051 mm	1.065 in	Solder	0.25 Ám	10 Áin	0.1 in	2.54 mm			Surface Mount	2	0.174 in	4.42 mm	22.631 mm	0.891 in
Samtec Inc. HW-04-20-G-D-375-SM	Gold	2.54 mm	0.1 in	8	Black	27.051 mm	1.065 in	Solder	0.25 Ám	10 Áin	0.1 in	2.54 mm			Surface Mount	2			9.525 mm	0.375 in
Samtec Inc. HW-04-20-F-D-891-SM-A	Gold	2.54 mm	0.1 in	8	Black	27.051 mm	1.065 in	Solder	0.076 Ám	3 Áin	0.1 in	2.54 mm			Surface Mount	2	0.174 in	4.42 mm	22.631 mm	0.891 in
Samtec Inc. HW-04-20-G-D-875-SM	Gold	2.54 mm	0.1 in	8	Black	27.051 mm	1.065 in	Solder	0.25 Ám	10 Áin	0.1 in	2.54 mm			Surface Mount	2	0.19 in	4.826 mm	22.225 mm	0.875 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.18
