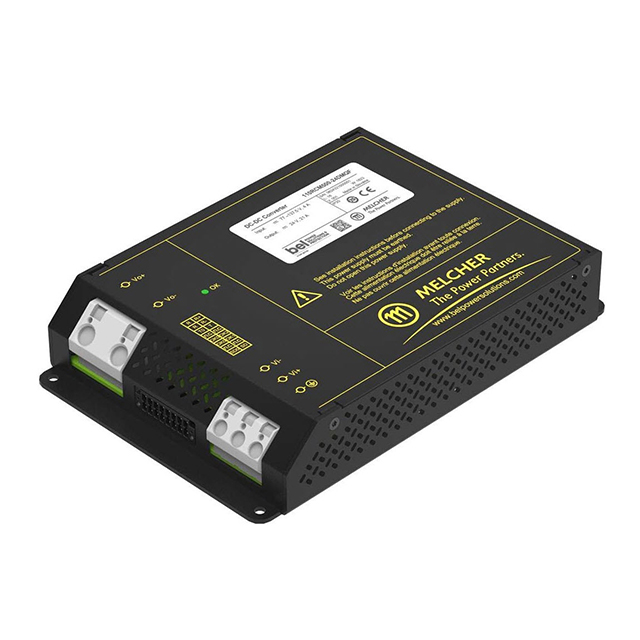

110RCM1000-24

Active

Bel Power Solutions

DC/DC CONVERTER 24V 1000W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC/DC CONVERTER 24V 1000W

Technical Specifications

Parameters and characteristics for this part

DC/DC CONVERTER 24V 1000W

Part	Power (Watts)	Voltage - Input (Max) [Max]	Efficiency	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Mounting Type	Approval Agency	Type	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Applications
Bel Power Solutions 110RCM1000-24	1 kW	137.5 V	96 %	24 V	42 A	77 V	8.23 "	141 mm	1.87 "	47.4 mm	5.55 in	209 mm	4.2 kV	Chassis Mount	CE	Conformal Coated, Enclosed	1	-40 °C	70 °C	ITE (Commercial), Railway

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed, Conformal Coated DC DC Converter 1 Output 24V 42A 137.5V Input

Technical documentation and resources

No documents available
